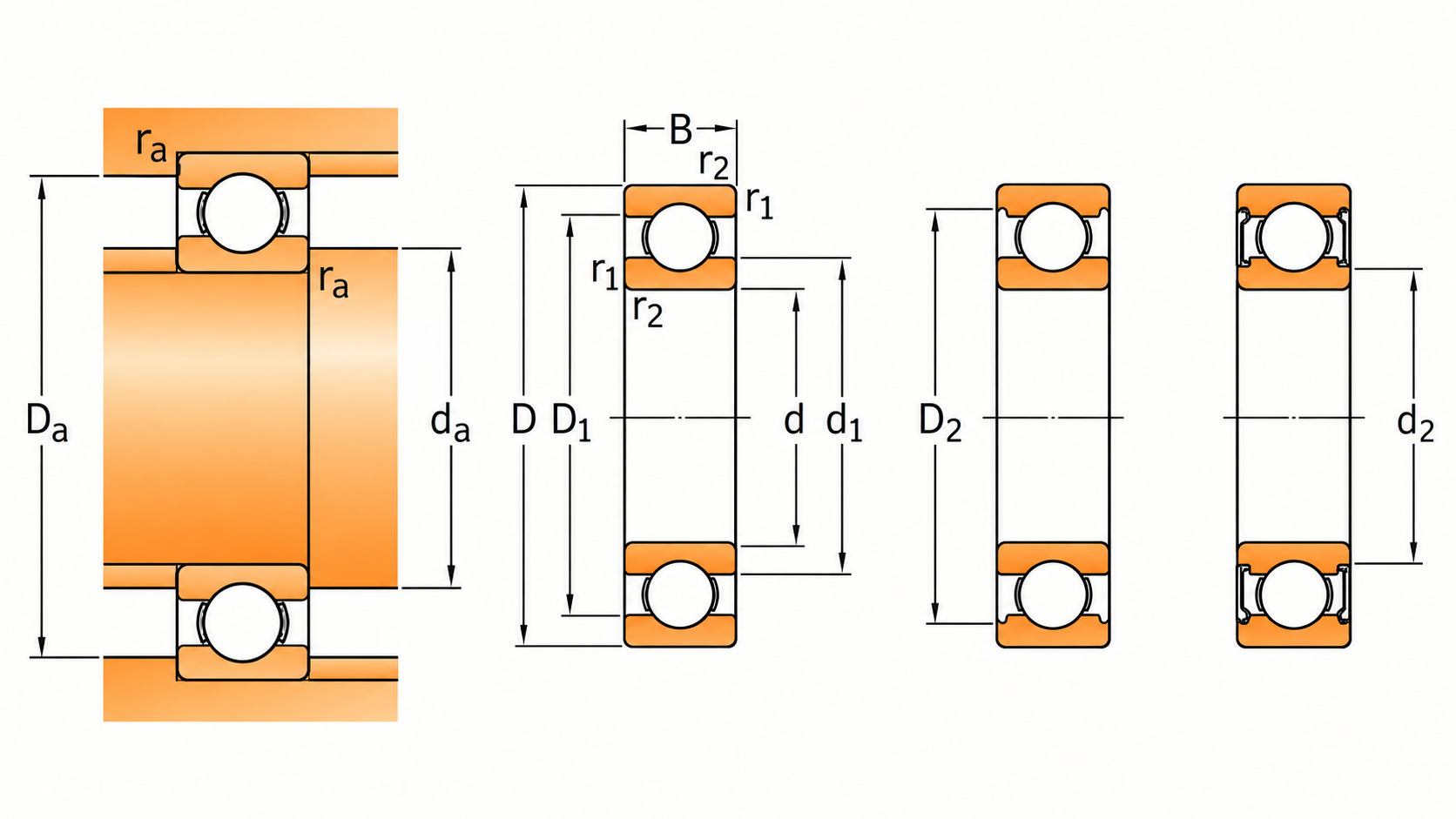

Single row deep groove ball bearings · Designation: 16011
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 55 |
| D | 90 |
| B | 11 |
| Dynamic | 20.3 |
| Static | 14 |
| Load limit | 0.695 |
| Reference speed | 16000 |
| Limiting speed | 10000 |
| Mass | 0.26 |
| d1 | 67 |
| d2 | – |
| D1 | 78.1 |
| D2 | – |
| r1,2 | 0.6 |
| da min | 59 |
| da max | – |
| Da max | 86 |
| ra max | 0.6 |
| kr | 0.02 |
| f0 | 14 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single row deep groove ball bearings
| Parameter | Value |
|---|---|
| d | 55 |
| D | 90 |
| B | 11 |
| Dynamic | 20.3 |
| Static | 14 |
| Load limit | 0.695 |
| Reference speed | 16000 |
| Limiting speed | 10000 |
| Mass | 0.26 |
| d1 | 67 |
| d2 | – |
| D1 | 78.1 |
| D2 | – |
| r1,2 | 0.6 |
| da min | 59 |
| da max | – |
| Da max | 86 |
| ra max | 0.6 |
| kr | 0.02 |
| f0 | 14 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 16011.
