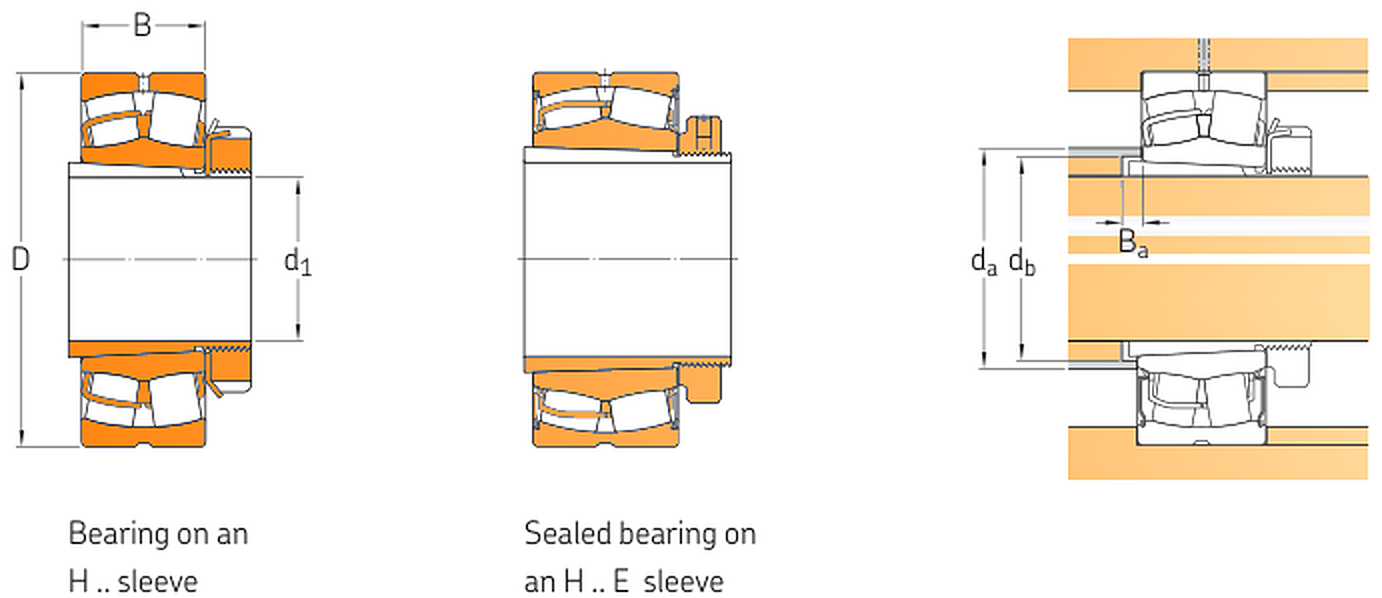

Spherical roller bearings on an adapter sleeve · Designation: 22206 EK
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| D | 62 |
| B | 20 |
| Mass | 0.39 |
| d1 | 25 |
| da max | 37 |
| Adapter sleeve | H 306 |
| db min | 33 |
| Ba min | 5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Spherical roller bearings on an adapter sleeve
| Parameter | Value |
|---|---|
| D | 62 |
| B | 20 |
| Mass | 0.39 |
| d1 | 25 |
| da max | 37 |
| Adapter sleeve | H 306 |
| db min | 33 |
| Ba min | 5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 22206 EK.
