Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

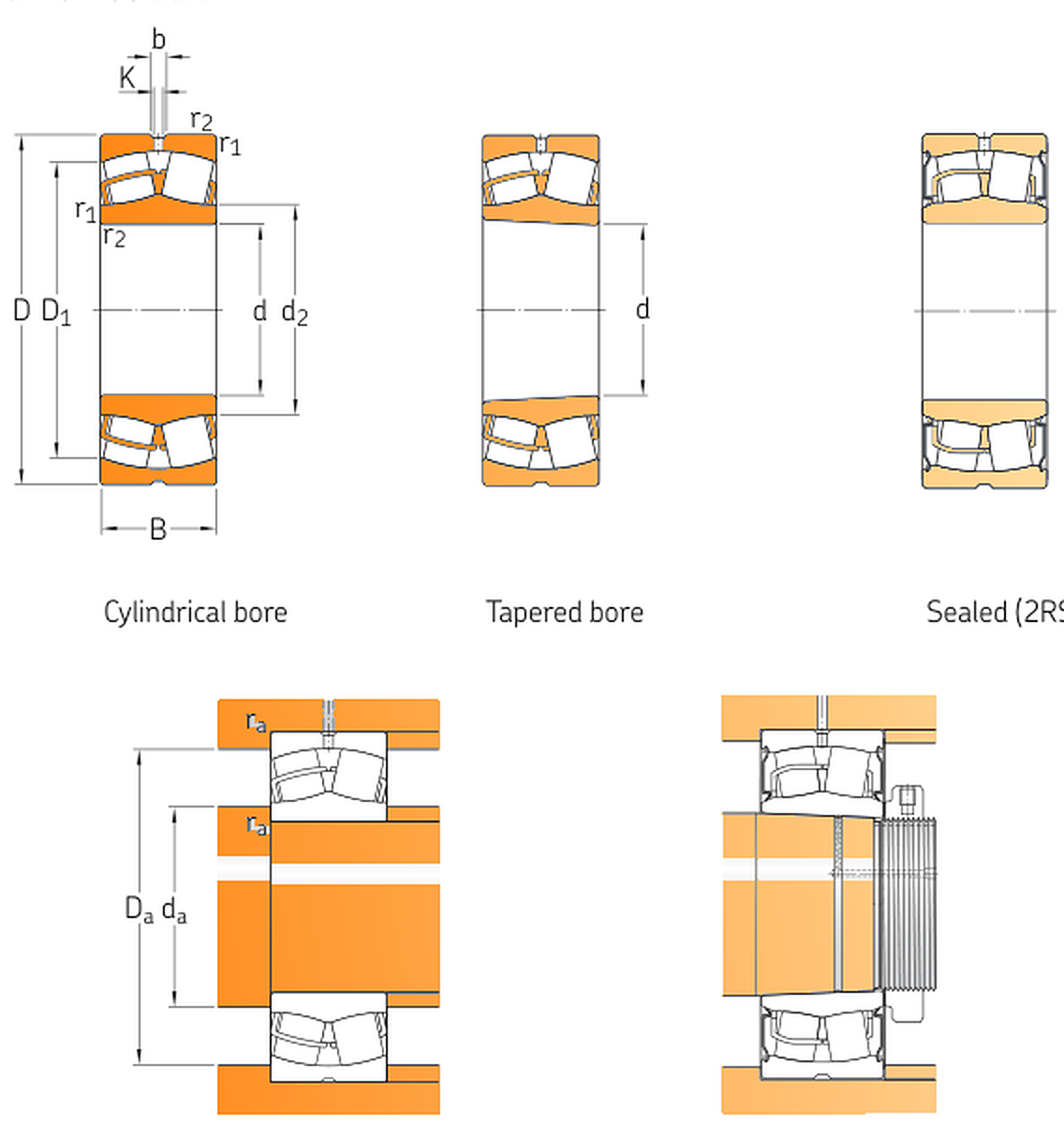

| Parameter | Value |
|---|---|
| d | 710 |
| D | 1030 |
| B | 315 |
| Dynamic | 11166 |
| Static | 22000 |
| Load limit | 1430 |
| Reference speed | 20 |
| Limiting speed | 40 |
| Mass | 843 |
| d2 | 810 |
| D1 | 931 |
| r1,2 | 7.5 |
| da min | 738 |
| da max | – |
| Da max | 1002 |
| ra max | 6 |
| b | 61.8 |
| K | 15 |
| e | 0.3 |
| Y1 | 2.3 |
| Y2 | 3.4 |
| Y0 | 2.2 |
| Permissible acceleration rotational | – |
| Permissible acceleration linear | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
