Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

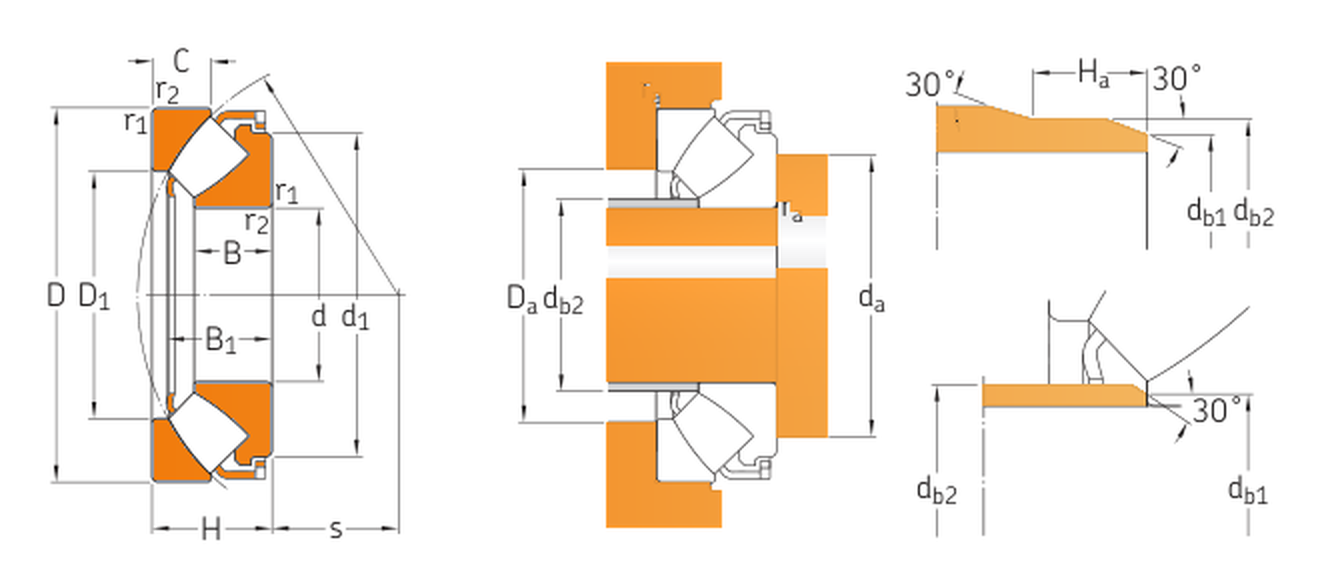

| Parameter | Value |
|---|---|
| d | 240 |
| D | 340 |
| B | 19 |
| Dynamic | 799 |
| Static | 3450 |
| Load limit | 335 |
| Reference speed | 1100 |
| Limiting speed | 1800 |
| Mass | 16.5 |
| d1 | 330 |
| D1 | 283 |
| r1,2 | 2.1 |
| da min | 290 |
| Da max | 308 |
| ra max | 2 |
| C | 30 |
| B1 | 57 |
| H | 60 |
| s | 130 |
| Minimum load factor | 1.1 |
| db1 max | – |
| db2 max | – |
| Ha min | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
