Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

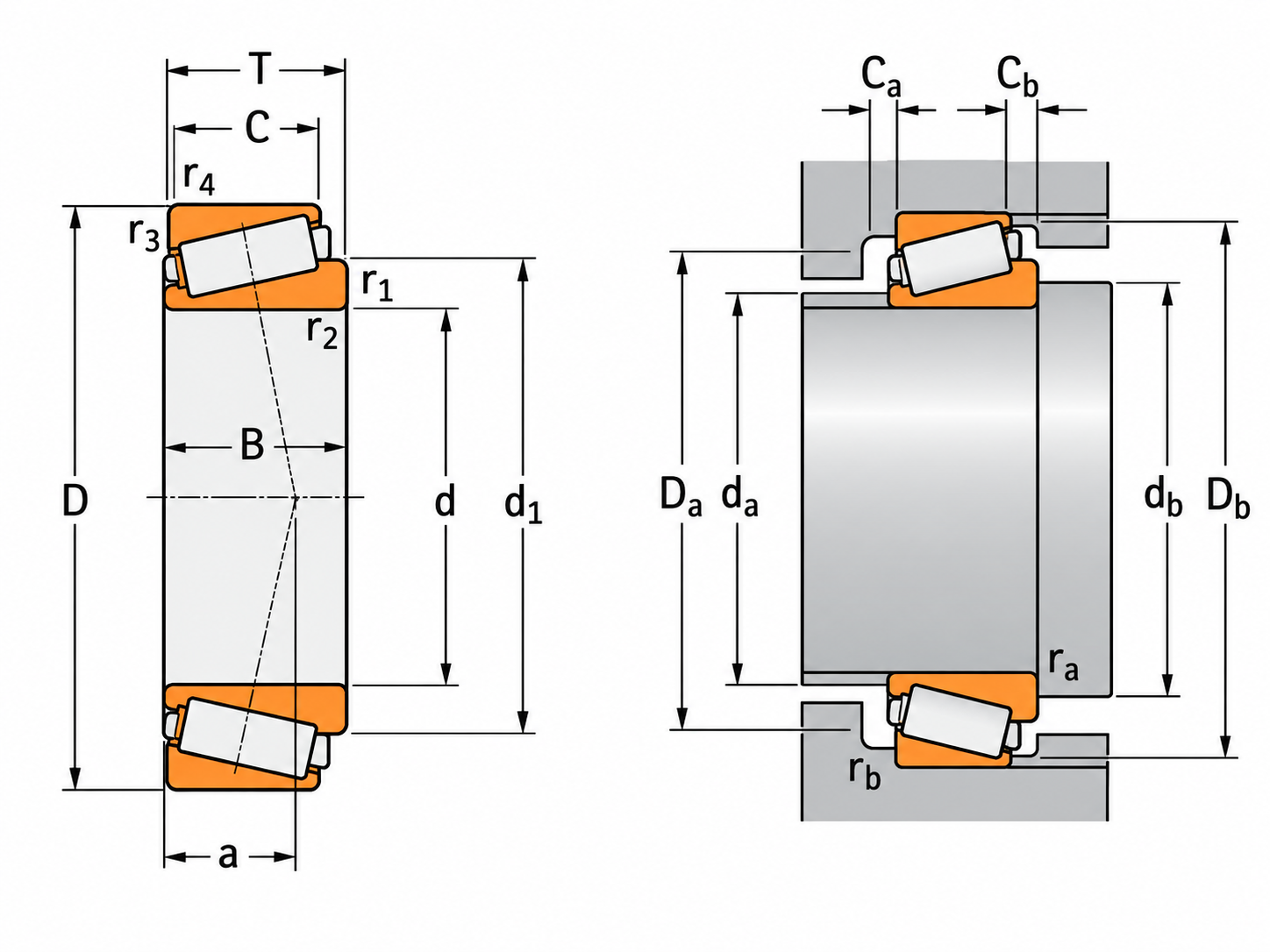

| Parameter | Value |
|---|---|
| d | 15 |
| D | 35 |
| B | 11 |
| Dynamic | 18.5 |
| Static | 14.6 |
| Load limit | 1.43 |
| Reference speed | 17000 |
| Limiting speed | 20000 |
| Mass | 0.055 |
| d1 | 25.6 |
| r1,2 | 0.6 |
| da max | 20 |
| Da max | 30.5 |
| ra max | 0.6 |
| C | 9.25 |
| Db min | 32 |
| r3,4 | 0.6 |
| a | 8 |
| rb max | 0.6 |
| e | 0.35 |
| Y0 | 0.9 |
| db min | 20.5 |
| Da min | 30 |
| T | 11.75 |
| Dimension series | 2CC |
| Ca min | 2 |
| Cb min | 2.5 |
| Y | 1.7 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
