Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

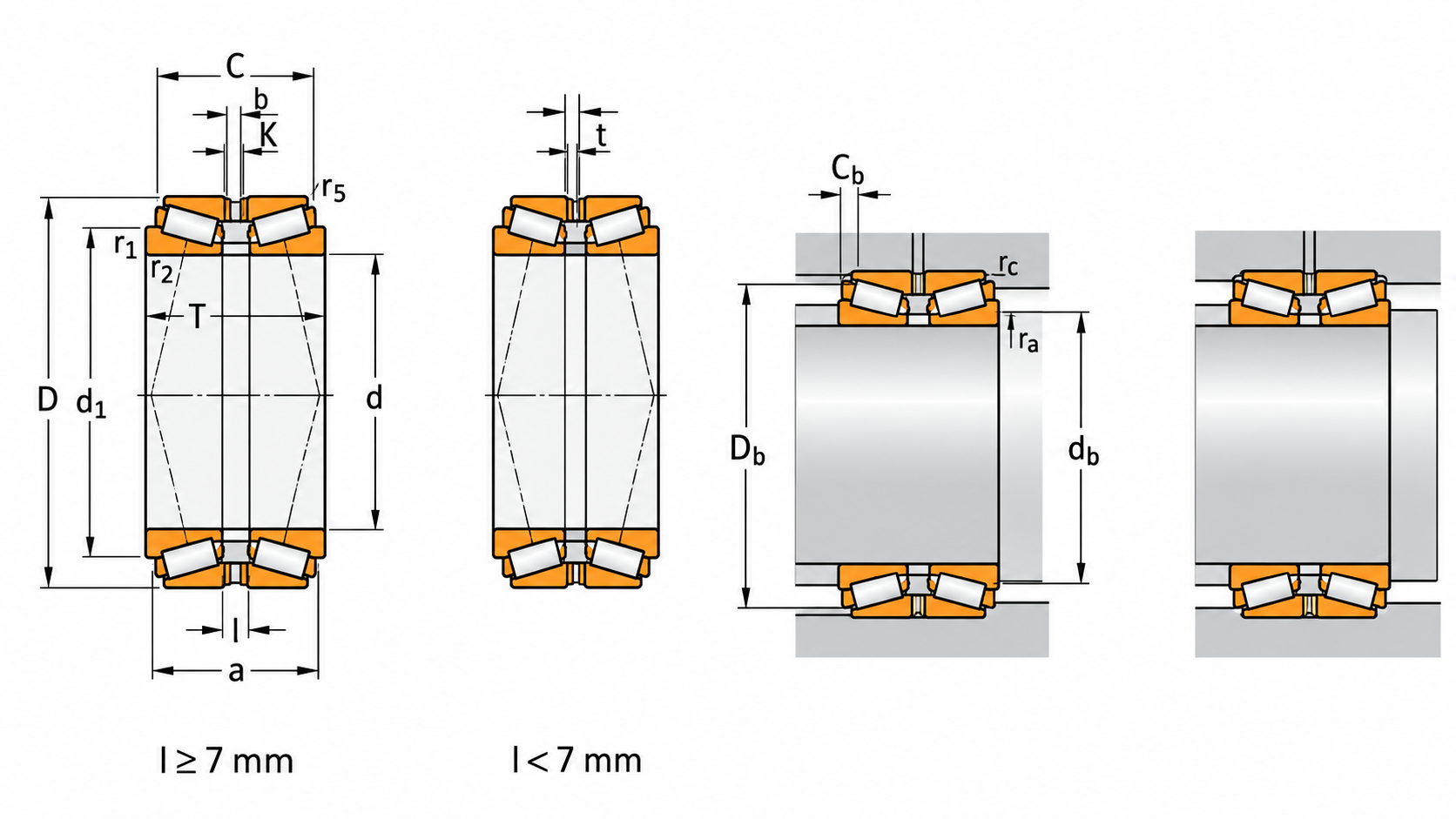

| Parameter | Value |
|---|---|
| d | 190 |
| D | 340 |
| Dynamic | 1308 |
| Static | 2000 |
| Load limit | 190 |
| Reference speed | 1100 |
| Limiting speed | 1800 |
| Mass | 44.5 |
| d1 | 254 |
| r1,2 | 5 |
| ra max | 5 |
| b | 9 |
| C | 108 |
| Db min | 318 |
| a | 142 |
| K | 4.5 |
| e | 0.43 |
| Y1 | 1.6 |
| Y2 | 2.3 |
| Y0 | 1.6 |
| db min | 210 |
| T | 136 |
| Cb min | 14 |
| r5 | 1.5 |
| rc max | 1.5 |
| l | 16 |
| t | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
