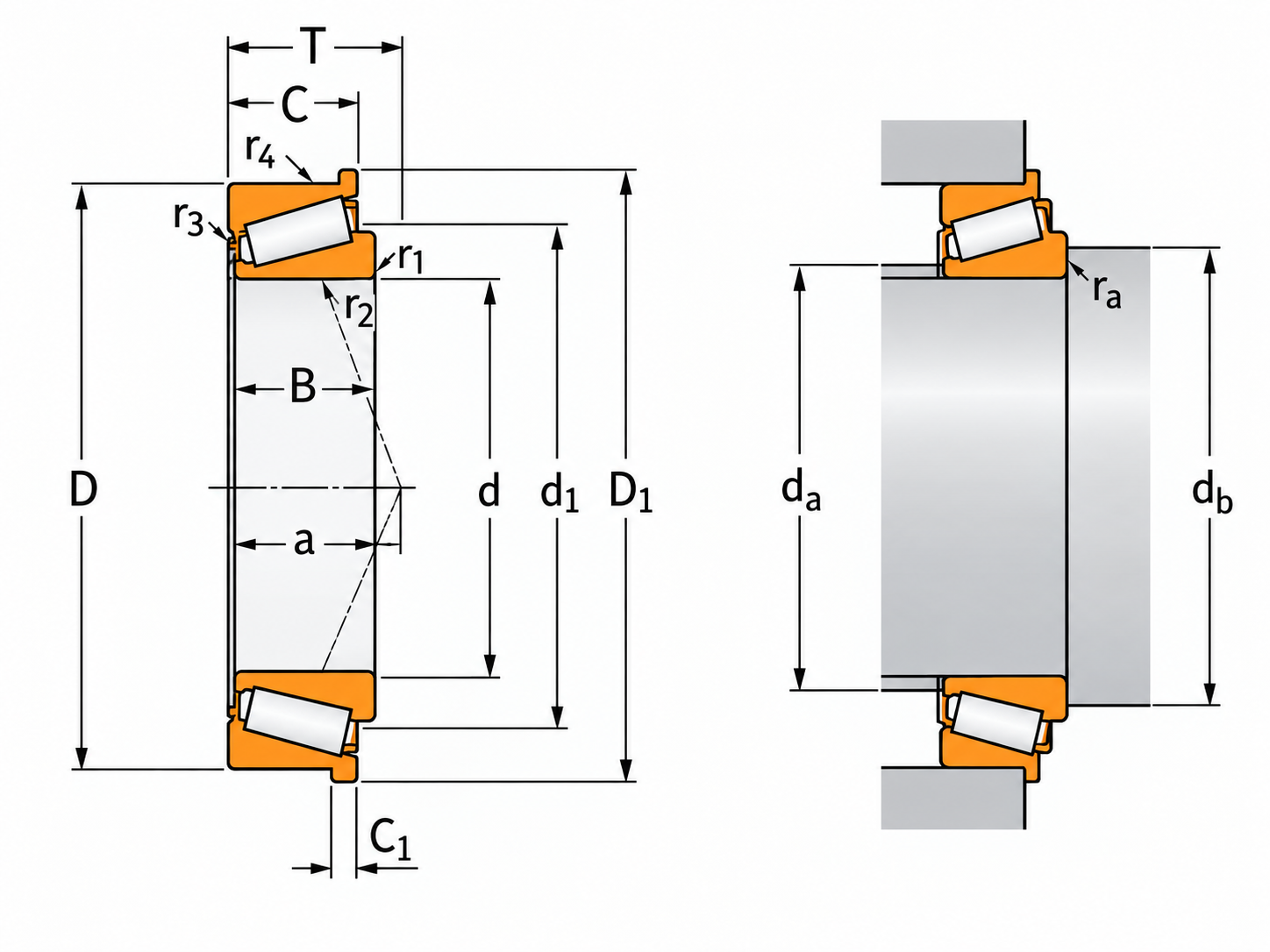

Single row tapered roller bearings with a flanged outer ring · Designation: 30307 R
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 35 |
| D | 80 |
| B | 21 |
| Dynamic | 88.9 |
| Static | 73.5 |
| Load limit | 8.3 |
| Reference speed | 7500 |
| Limiting speed | 9000 |
| Mass | 0.53 |
| d1 | 54.5 |
| D1 | 85 |
| r1,2 | 2 |
| da max | 46 |
| ra max | 2 |
| C | 18 |
| r3,4 | 1.5 |
| a | 16 |
| C1 | 4.5 |
| e | 0.31 |
| Y0 | 1.1 |
| db min | 44.5 |
| T | 22.75 |
| Y | 1.9 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single row tapered roller bearings with a flanged outer ring
| Parameter | Value |
|---|---|
| d | 35 |
| D | 80 |
| B | 21 |
| Dynamic | 88.9 |
| Static | 73.5 |
| Load limit | 8.3 |
| Reference speed | 7500 |
| Limiting speed | 9000 |
| Mass | 0.53 |
| d1 | 54.5 |
| D1 | 85 |
| r1,2 | 2 |
| da max | 46 |
| ra max | 2 |
| C | 18 |
| r3,4 | 1.5 |
| a | 16 |
| C1 | 4.5 |
| e | 0.31 |
| Y0 | 1.1 |
| db min | 44.5 |
| T | 22.75 |
| Y | 1.9 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 30307 R.
