Sealed double row full complement cylindrical roller bearings · Designation: 319436 DA-2LS
Parameters as recorded in the source. Missing values are shown as a dash.

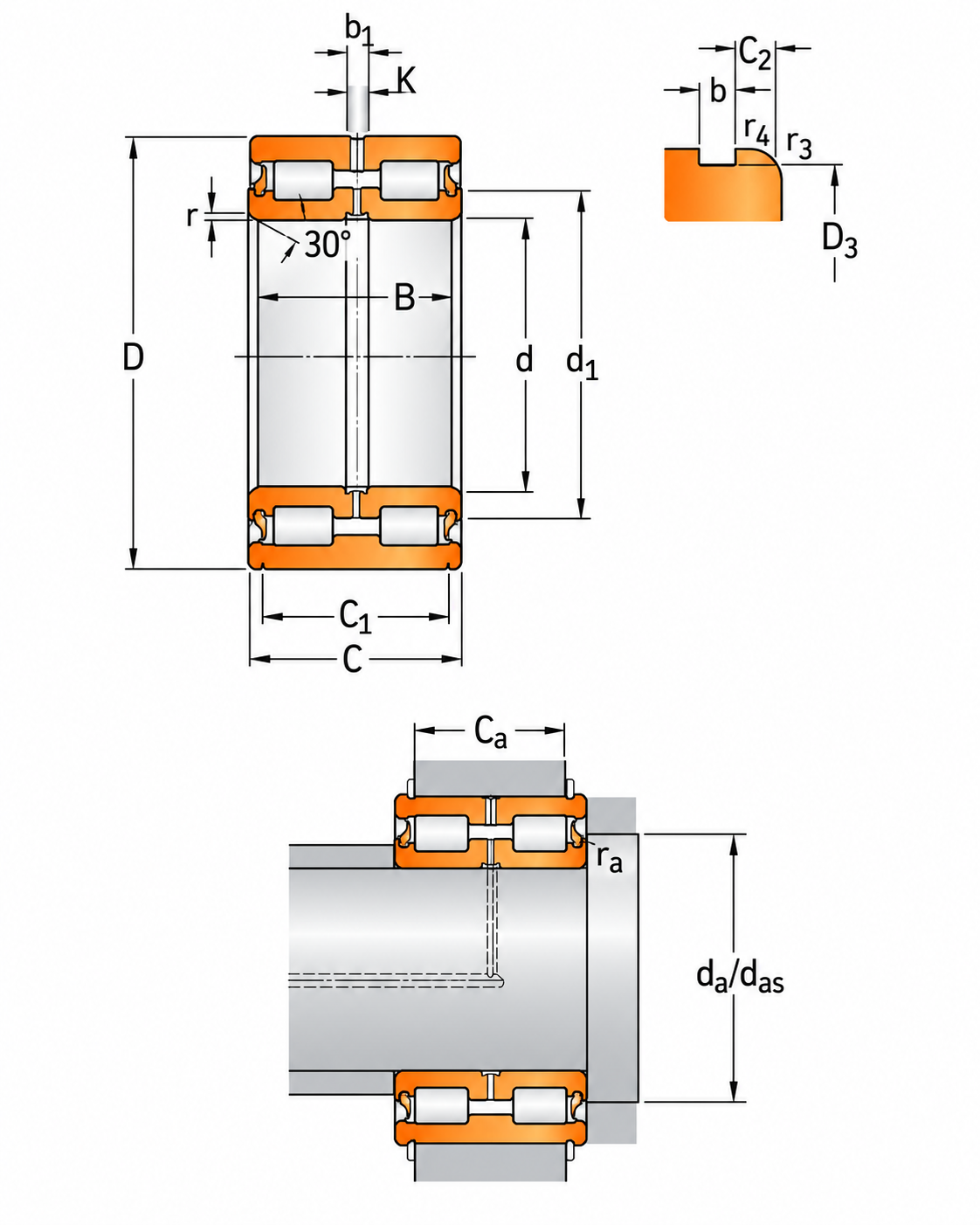

| Parameter | Value |
|---|---|
| d | 180 |
| D | 240 |
| B | 80 |
| Dynamic | 528 |
| Static | 1100 |
| Load limit | 114 |
| Limiting speed | 480 |
| Mass | 9.8 |
| d1 | 203 |
| da min | 187 |
| ra max | 1 |
| kr | 0.4 |
| b | 5.2 |
| C | 79 |
| Snap ring | SW 240 |
| D3 | 236 |
| r3,4 | 0.6 |
| C1 | 71.2 |
| K | 4 |
| das | 199 |
| b1 | 7 |
| C2 | 3.9 |
| r | 1.8 |
| Ca1 | 65 |
| Ca2 | 61 |
| Snap ring#2 | 240x5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
