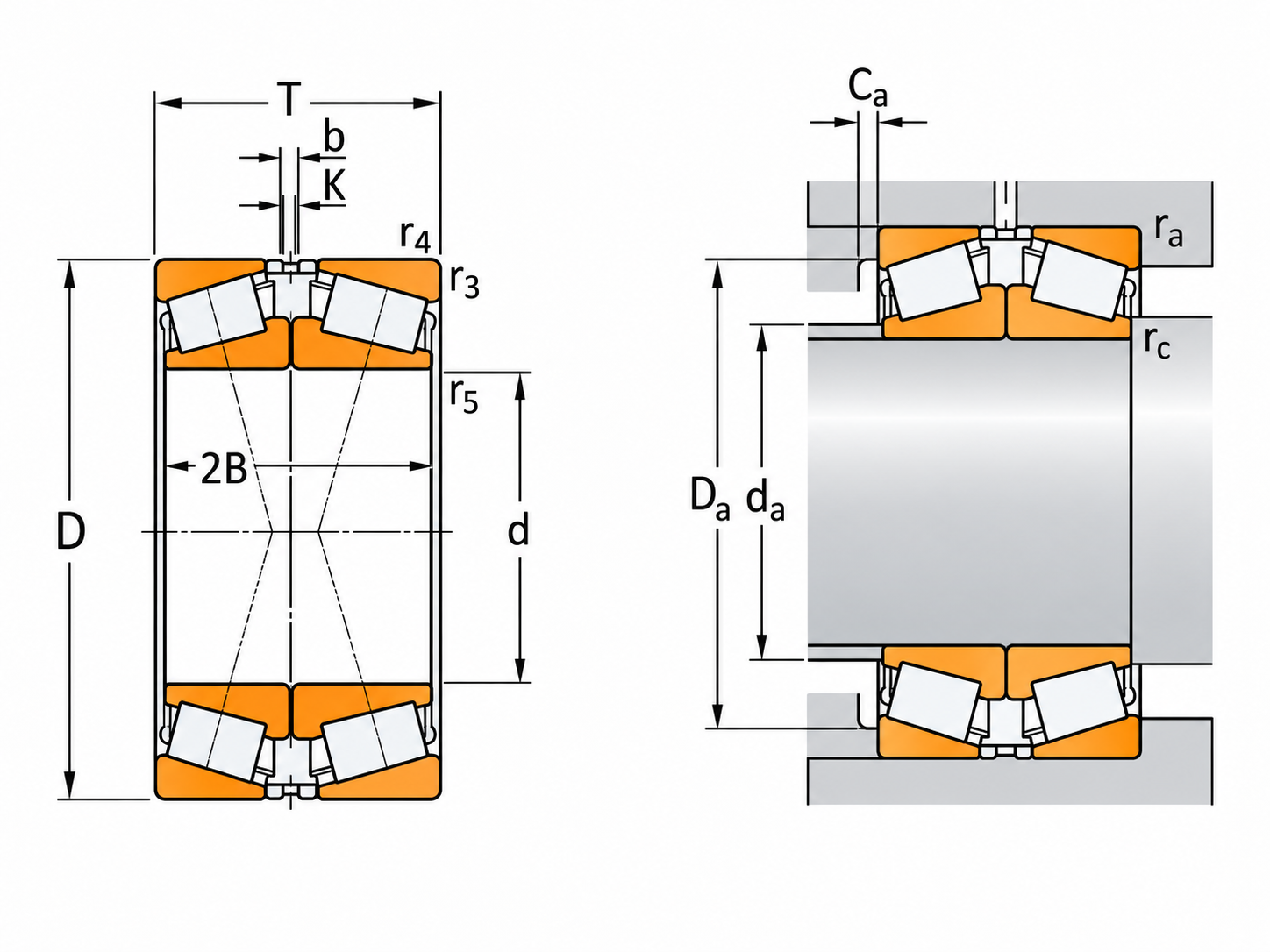

Matched bearings arranged face-to-face · Designation: 32207/DF
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 35 |
| D | 72 |
| Dynamic | 139 |
| Static | 156 |
| Load limit | 17 |
| Reference speed | 6300 |
| Limiting speed | 9500 |
| Mass | 0.91 |
| da max | 43 |
| Da max | 64 |
| ra max | 1.5 |
| b | 5 |
| r3,4 | 1.5 |
| K | 3 |
| e | 0.37 |
| Y1 | 1.8 |
| Y2 | 2.7 |
| Y0 | 1.8 |
| Da min | 61 |
| T | 48.5 |
| Ca min | 3 |
| 2B | 46 |
| r5 | 0.6 |
| rc max | 0.6 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Matched bearings arranged face-to-face
| Parameter | Value |
|---|---|
| d | 35 |
| D | 72 |
| Dynamic | 139 |
| Static | 156 |
| Load limit | 17 |
| Reference speed | 6300 |
| Limiting speed | 9500 |
| Mass | 0.91 |
| da max | 43 |
| Da max | 64 |
| ra max | 1.5 |
| b | 5 |
| r3,4 | 1.5 |
| K | 3 |
| e | 0.37 |
| Y1 | 1.8 |
| Y2 | 2.7 |
| Y0 | 1.8 |
| Da min | 61 |
| T | 48.5 |
| Ca min | 3 |
| 2B | 46 |
| r5 | 0.6 |
| rc max | 0.6 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 32207/DF.
