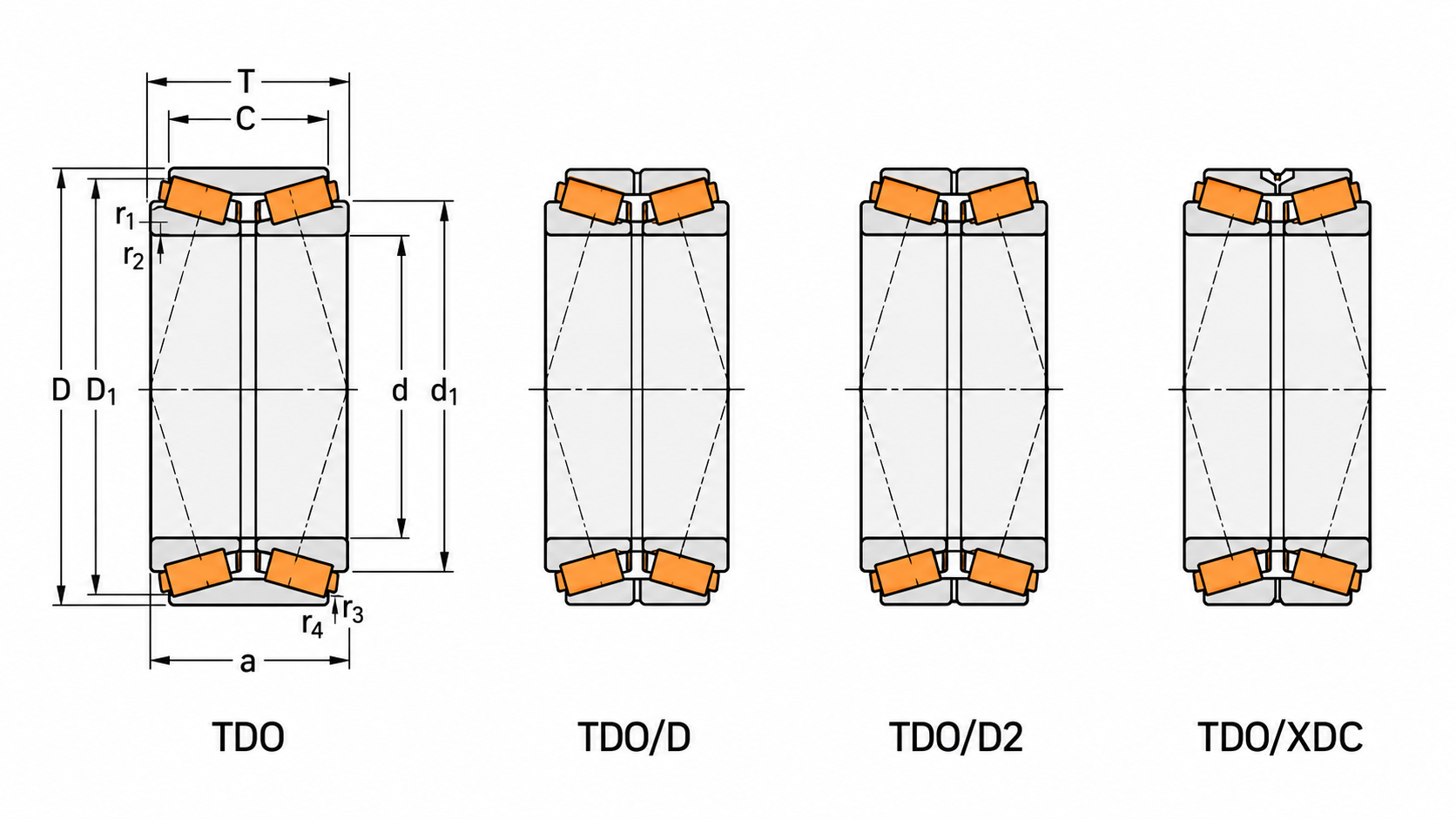

Double row tapered roller bearings, TDO design · Designation: 331945
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 228.6 |
| D | 488.95 |
| Dynamic | 3143 |
| Static | 4500 |
| Load limit | 390 |
| Mass | 205 |
| d1 | 400 |
| D1 | 456 |
| r1,2 | 6.4 |
| C | 152.4 |
| r3,4 | 1.5 |
| a | 326 |
| K | 0.62 |
| e | 0.94 |
| Y1 | 0.72 |
| Y2 | 1.07 |
| Y0 | 0.7 |
| T | 254 |
| Design variant/feature | TDO/D |
| CF | 780 |
| CFa | 726 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Double row tapered roller bearings, TDO design
| Parameter | Value |
|---|---|
| d | 228.6 |
| D | 488.95 |
| Dynamic | 3143 |
| Static | 4500 |
| Load limit | 390 |
| Mass | 205 |
| d1 | 400 |
| D1 | 456 |
| r1,2 | 6.4 |
| C | 152.4 |
| r3,4 | 1.5 |
| a | 326 |
| K | 0.62 |
| e | 0.94 |
| Y1 | 0.72 |
| Y2 | 1.07 |
| Y0 | 0.7 |
| T | 254 |
| Design variant/feature | TDO/D |
| CF | 780 |
| CFa | 726 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 331945.
