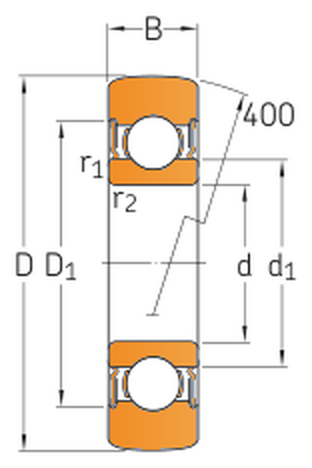

Single row cam rollers · Designation: 361200 R
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 10 |
| D | 32 |
| B | 9 |
| Dynamic | 4.68 |
| Static | 2.04 |
| Load limit | 0.085 |
| Limiting speed | 12000 |
| Mass | 0.04 |
| d1 | 17 |
| D1 | 24.8 |
| r1,2 | 0.6 |
| f0 | 13 |
| Fr max | 3.45 |
| F0r max | 5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single row cam rollers
| Parameter | Value |
|---|---|
| d | 10 |
| D | 32 |
| B | 9 |
| Dynamic | 4.68 |
| Static | 2.04 |
| Load limit | 0.085 |
| Limiting speed | 12000 |
| Mass | 0.04 |
| d1 | 17 |
| D1 | 24.8 |
| r1,2 | 0.6 |
| f0 | 13 |
| Fr max | 3.45 |
| F0r max | 5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 361200 R.
