Double row deep groove ball bearings · Designation: 4309 ATN9
Parameters as recorded in the source. Missing values are shown as a dash.

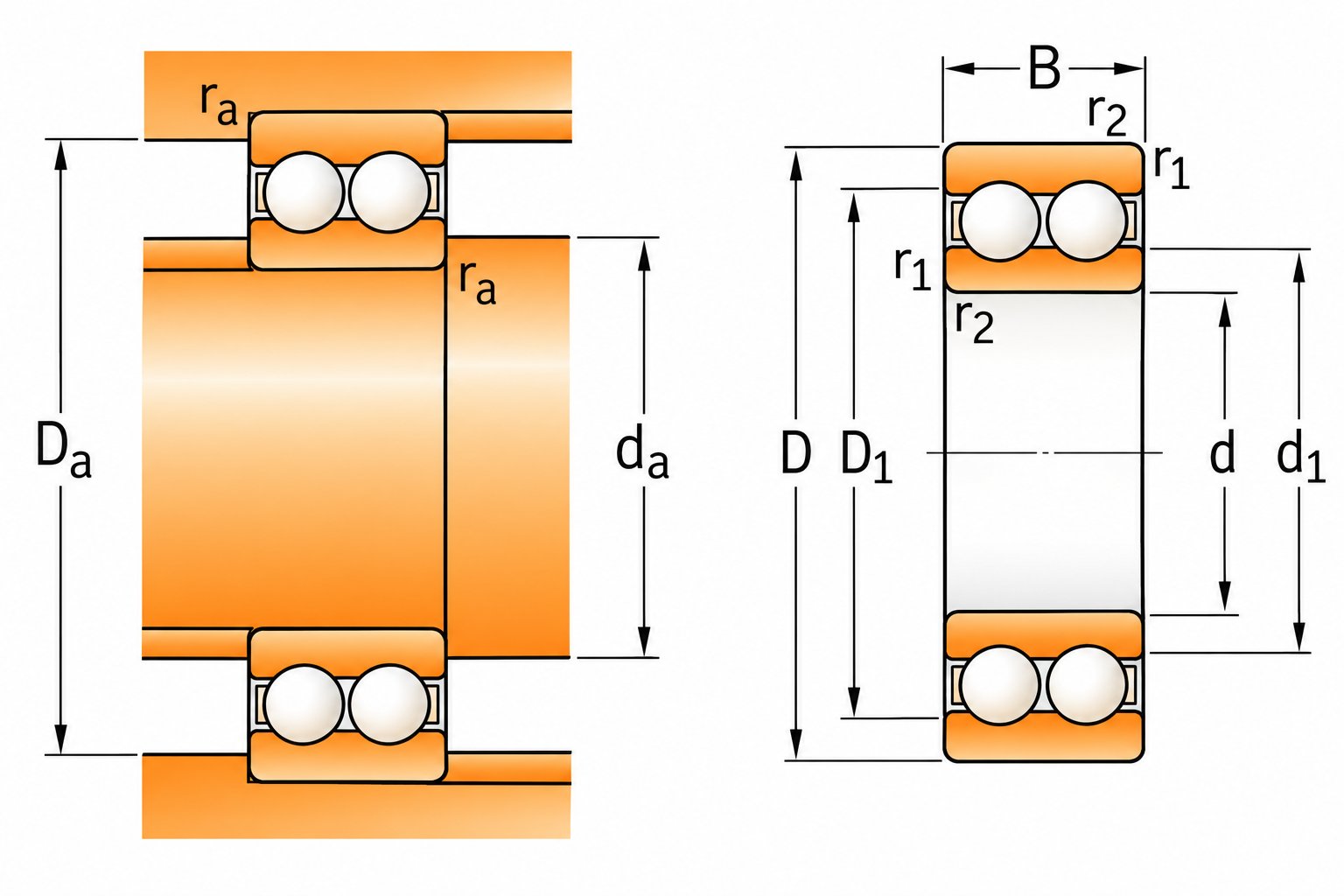

| Parameter | Value |
|---|---|
| d | 45 |
| D | 100 |
| B | 36 |
| Dynamic | 68.9 |
| Static | 56 |
| Load limit | 2.4 |
| Reference speed | 11000 |
| Limiting speed | 6000 |
| Mass | 1.25 |
| d1 | 63.5 |
| D1 | 81.5 |
| r1,2 | 1.5 |
| da min | 54 |
| Da max | 91 |
| ra max | 1.5 |
| kr | 0.06 |
| f0 | 14 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Double row deep groove ball bearings
| Parameter | Value |
|---|---|
| d | 45 |
| D | 100 |
| B | 36 |
| Dynamic | 68.9 |
| Static | 56 |
| Load limit | 2.4 |
| Reference speed | 11000 |
| Limiting speed | 6000 |
| Mass | 1.25 |
| d1 | 63.5 |
| D1 | 81.5 |
| r1,2 | 1.5 |
| da min | 54 |
| Da max | 91 |
| ra max | 1.5 |
| kr | 0.06 |
| f0 | 14 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 4309 ATN9.
