Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

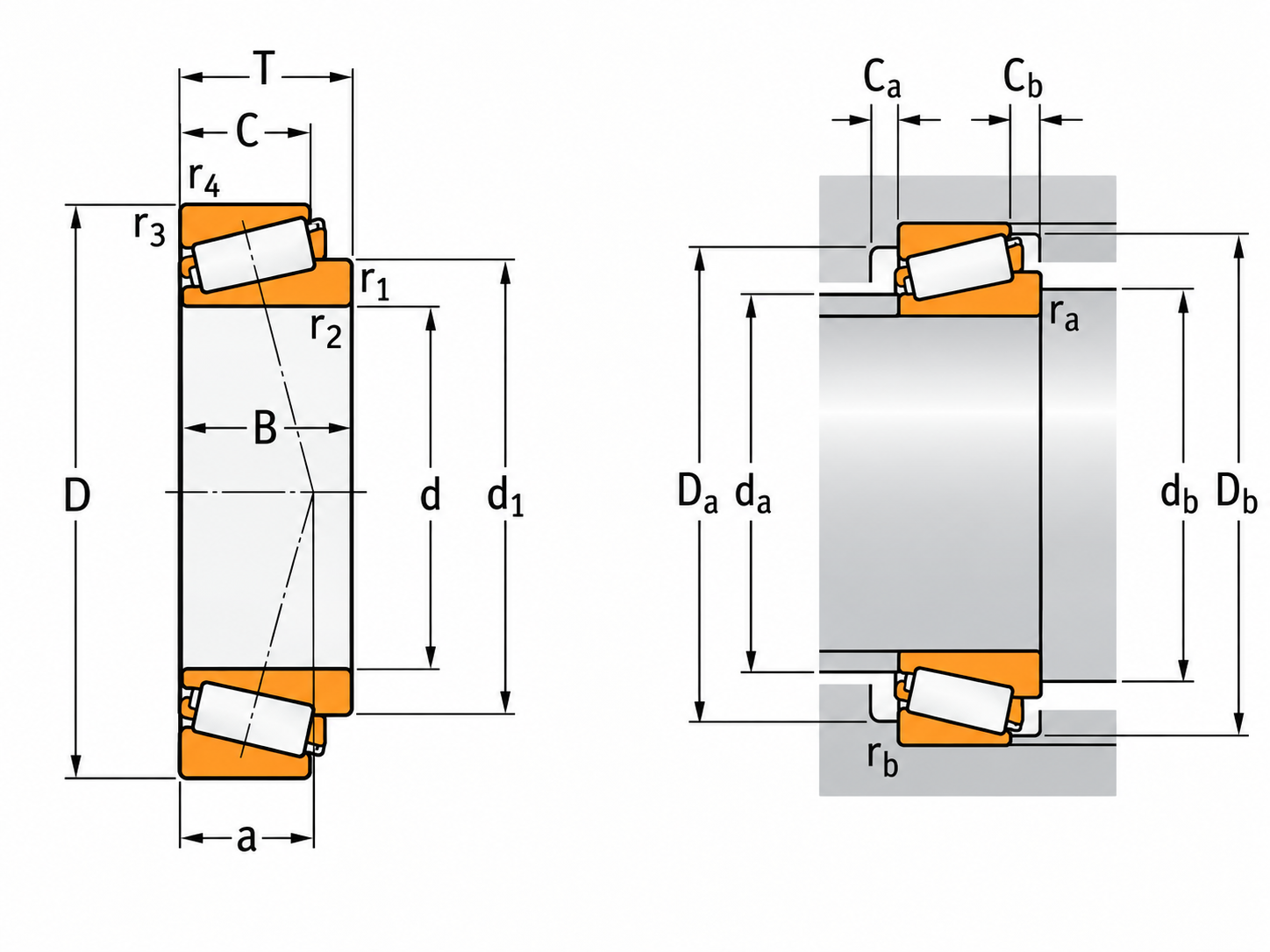

| Parameter | Value |
|---|---|
| d | 69.85 |
| D | 120 |
| B | 29.007 |
| Dynamic | 163 |
| Static | 186 |
| Load limit | 21.6 |
| Reference speed | 4500 |
| Limiting speed | 5300 |
| Mass | 1.35 |
| d1 | 92.5 |
| r1,2 | 3.5 |
| da max | 80 |
| Da max | 110 |
| ra max | 3.5 |
| C | 24.237 |
| Db min | 112 |
| r3,4 | 2 |
| a | 25 |
| rb max | 2 |
| e | 0.37 |
| Y0 | 0.9 |
| db min | 84 |
| Da min | 103 |
| T | 29.795 |
| Ca min | 4 |
| Cb min | 5.5 |
| Y | 1.6 |
| Series | 475 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
