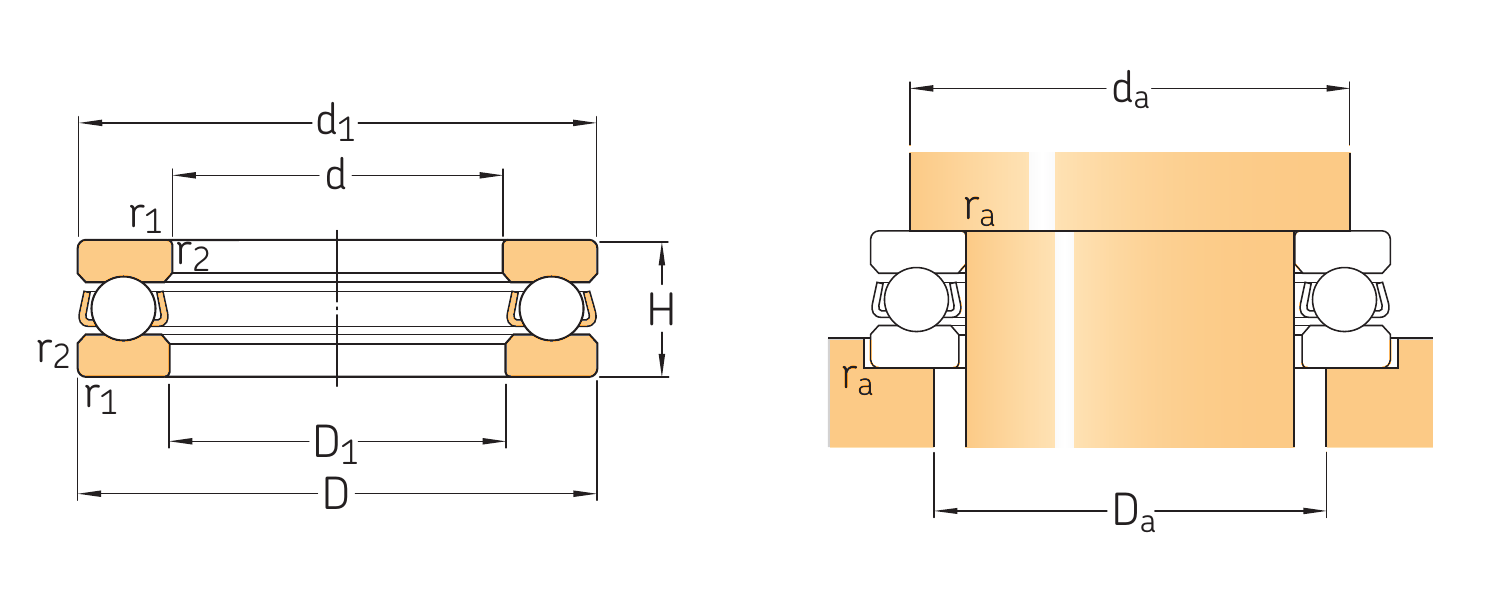

Single direction thrust ball bearings · Designation: 51102
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 15 |
| D | 28 |
| Dynamic | 10.6 |
| Static | 18.3 |
| Load limit | 0.67 |
| Reference speed | 8500 |
| Limiting speed | 12000 |
| Mass | 0.023 |
| d1 | 28 |
| D1 | 16 |
| r1,2 | 0.3 |
| da min | 23 |
| Da max | 20 |
| ra max | 0.3 |
| A | 0.0017 |
| H | 9 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single direction thrust ball bearings
| Parameter | Value |
|---|---|
| d | 15 |
| D | 28 |
| Dynamic | 10.6 |
| Static | 18.3 |
| Load limit | 0.67 |
| Reference speed | 8500 |
| Limiting speed | 12000 |
| Mass | 0.023 |
| d1 | 28 |
| D1 | 16 |
| r1,2 | 0.3 |
| da min | 23 |
| Da max | 20 |
| ra max | 0.3 |
| A | 0.0017 |
| H | 9 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 51102.
