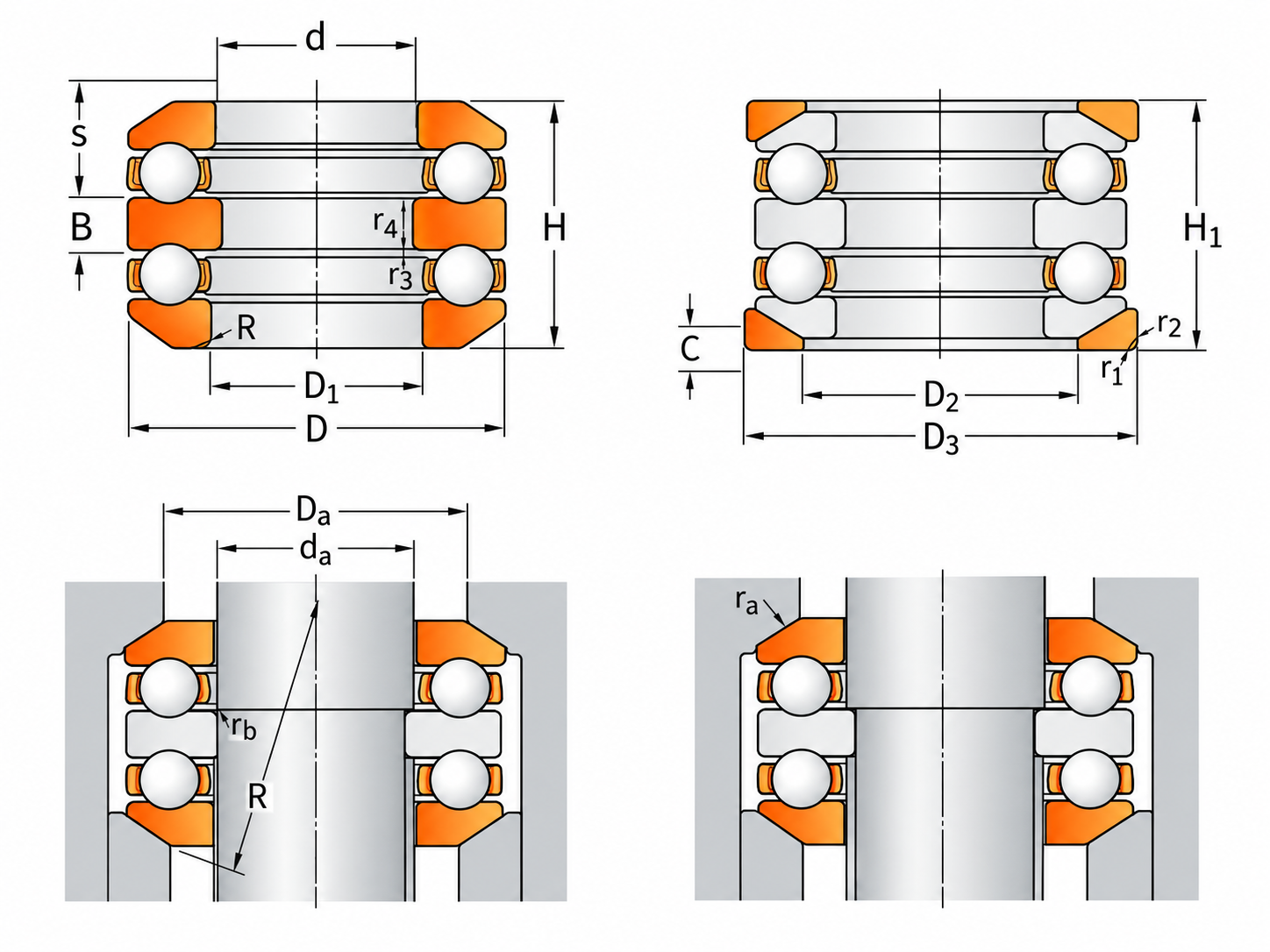

Double direction thrust ball bearings with sphered housing washers · Designation: 54207
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 30 |
| D | 62 |
| B | 8 |
| Dynamic | 35.1 |
| Static | 73.5 |
| Load limit | 2.7 |
| Reference speed | 2800 |
| Limiting speed | 4000 |
| Mass | 0.53 |
| D1 | 37 |
| D2 | 48 |
| r1,2 | 1 |
| Da max | 48 |
| ra max | 1 |
| C | 7 |
| D3 | 65 |
| r3,4 | 0.3 |
| rb max | 0.3 |
| A | 0.028 |
| H | 37.8 |
| H1 | 42 |
| Seat washer | U 207 |
| R | 50 |
| s | 21 |
| da | 35 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Double direction thrust ball bearings with sphered housing washers
| Parameter | Value |
|---|---|
| d | 30 |
| D | 62 |
| B | 8 |
| Dynamic | 35.1 |
| Static | 73.5 |
| Load limit | 2.7 |
| Reference speed | 2800 |
| Limiting speed | 4000 |
| Mass | 0.53 |
| D1 | 37 |
| D2 | 48 |
| r1,2 | 1 |
| Da max | 48 |
| ra max | 1 |
| C | 7 |
| D3 | 65 |
| r3,4 | 0.3 |
| rb max | 0.3 |
| A | 0.028 |
| H | 37.8 |
| H1 | 42 |
| Seat washer | U 207 |
| R | 50 |
| s | 21 |
| da | 35 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 54207.
