Single row deep groove ball bearings · Designation: 60/560 N1MAS
Parameters as recorded in the source. Missing values are shown as a dash.

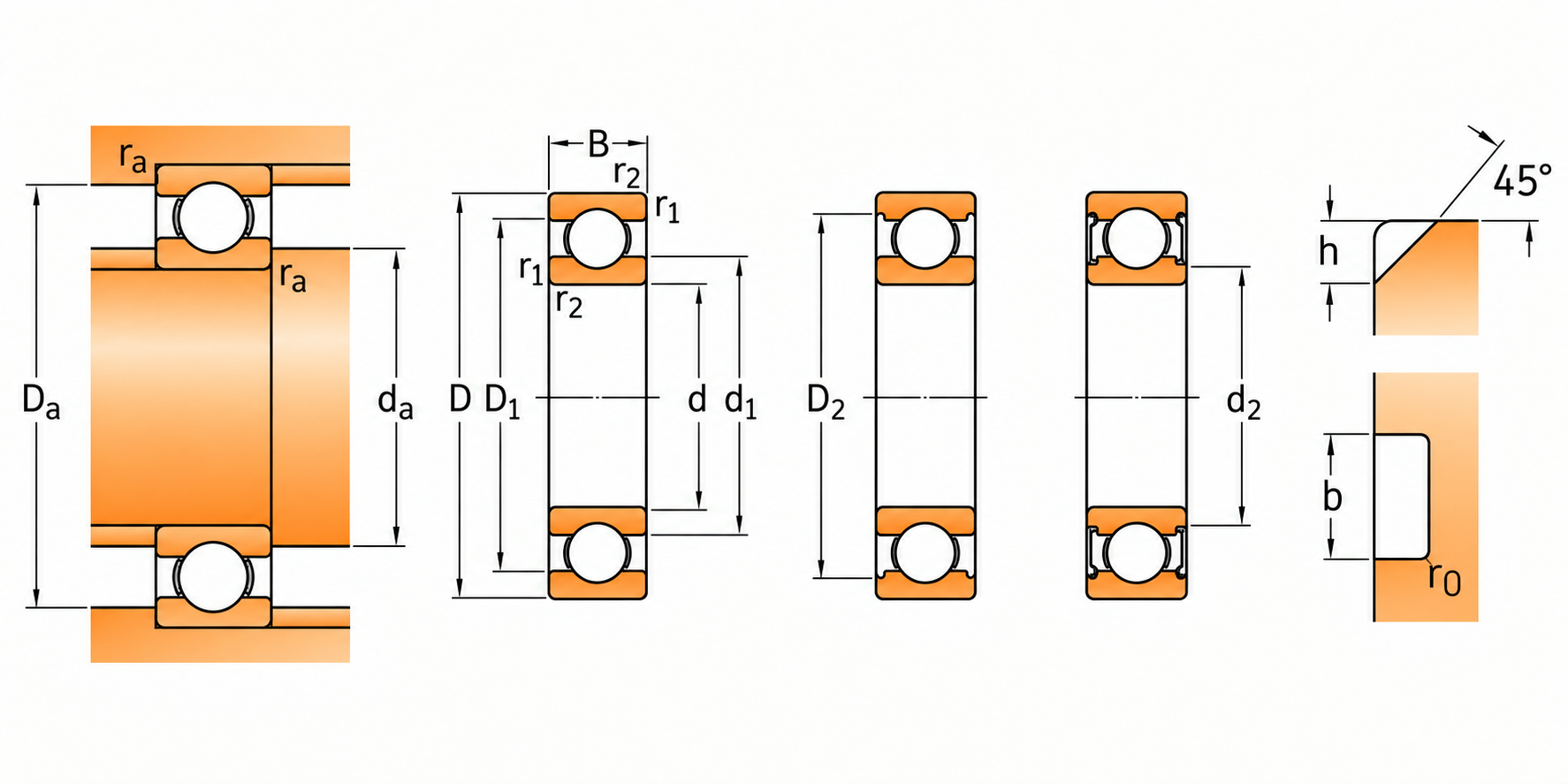

| Parameter | Value |
|---|---|
| d | 560 |
| D | 820 |
| B | 115 |
| Dynamic | 663 |
| Static | 1370 |
| Load limit | 22 |
| Reference speed | 1400 |
| Limiting speed | 1200 |
| Mass | 210 |
| d1 | 648 |
| d2 | – |
| D1 | 732 |
| D2 | – |
| r1,2 | 6 |
| da min | 583 |
| da max | – |
| Da max | 797 |
| ra max | 5 |
| kr | 0.025 |
| f0 | 16 |
| h | 25 |
| b | 20.5 |
| r0 | 3 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single row deep groove ball bearings
| Parameter | Value |
|---|---|
| d | 560 |
| D | 820 |
| B | 115 |
| Dynamic | 663 |
| Static | 1370 |
| Load limit | 22 |
| Reference speed | 1400 |
| Limiting speed | 1200 |
| Mass | 210 |
| d1 | 648 |
| d2 | – |
| D1 | 732 |
| D2 | – |
| r1,2 | 6 |
| da min | 583 |
| da max | – |
| Da max | 797 |
| ra max | 5 |
| kr | 0.025 |
| f0 | 16 |
| h | 25 |
| b | 20.5 |
| r0 | 3 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 60/560 N1MAS.
