Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

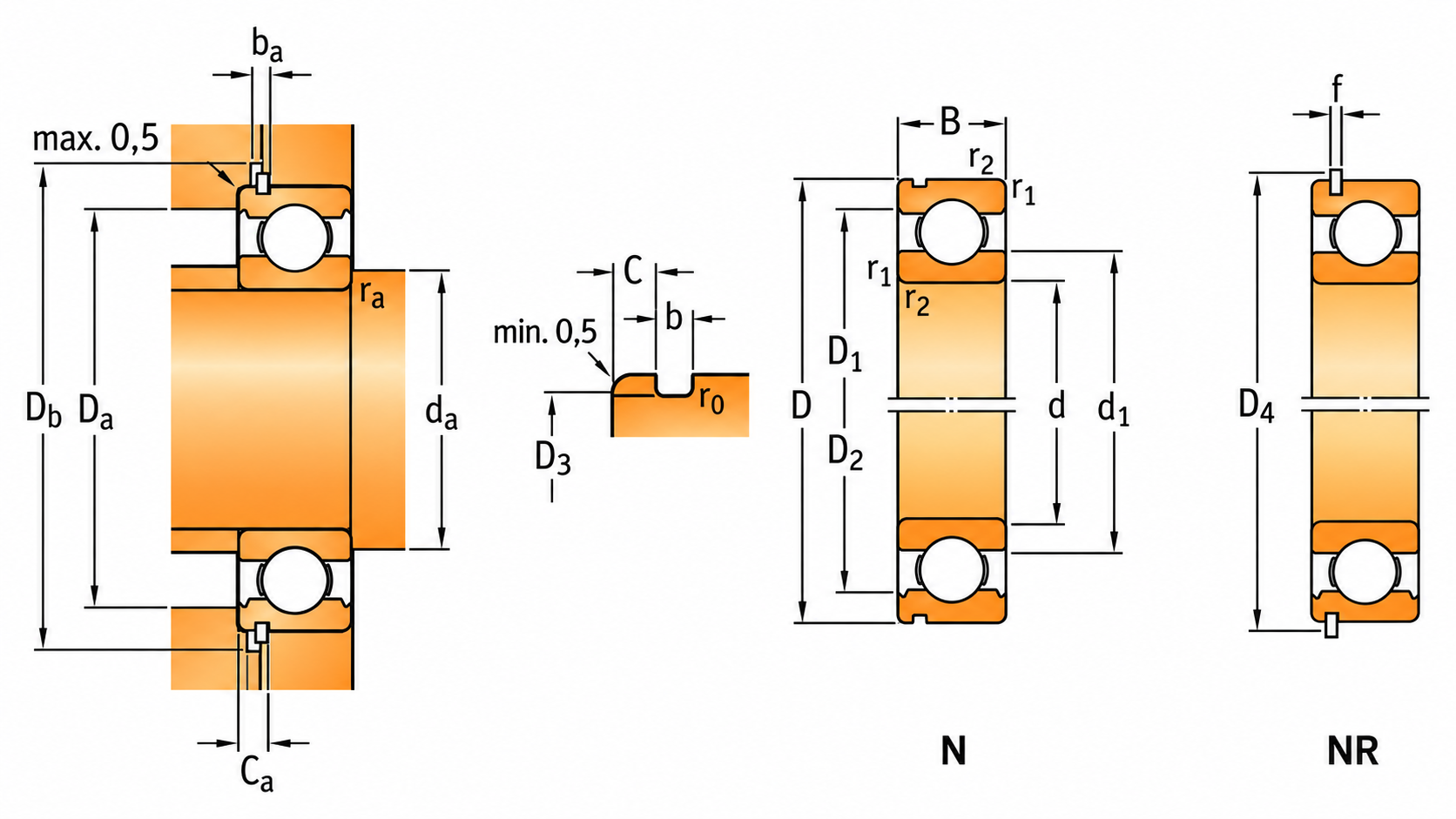

| Parameter | Value |
|---|---|
| d | 70 |
| D | 110 |
| B | 20 |
| Dynamic | 39.7 |
| Static | 31 |
| Load limit | 1.32 |
| Reference speed | 13000 |
| Limiting speed | 8000 |
| Mass | 0.63 |
| d1 | 82.8 |
| D1 | – |
| D2 | 99.9 |
| r1,2 | 1.1 |
| da min | 76 |
| da max | – |
| Da max | 104 |
| ra max | 1 |
| kr | 0.025 |
| f0 | 16 |
| b | 2.7 |
| r0 | 0.6 |
| C | 2.87 |
| Snap ring | SP 110 |
| D3 | 106.81 |
| D4 | 116.6 |
| f | 2.46 |
| Db min | 118 |
| ba min | 3 |
| Ca max | 5.33 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
