INSOCOAT deep groove ball bearings · Designation: 6322/C3VL0241
Parameters as recorded in the source. Missing values are shown as a dash.

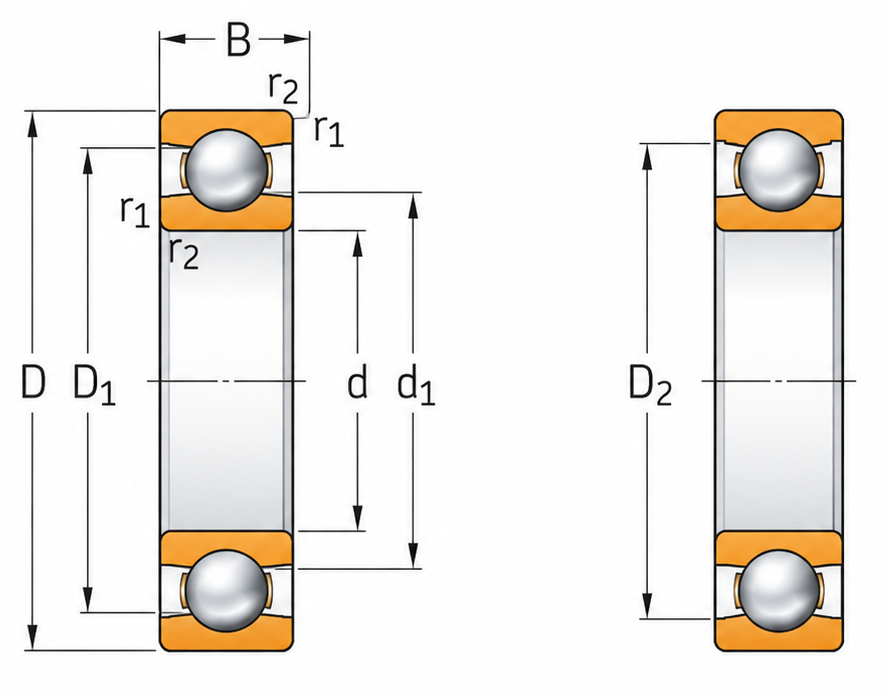

| Parameter | Value |
|---|---|
| d | 110 |
| D | 240 |
| B | 50 |
| Dynamic | 203 |
| Static | 180 |
| Load limit | 5.7 |
| Reference speed | 6000 |
| Limiting speed | 3800 |
| Mass | 9.65 |
| d1 | 149 |
| D1 | – |
| D2 | 207 |
| r1,2 | 3 |
| da min | 124 |
| da max | – |
| Da max | 226 |
| ra max | 2.5 |
| kr | 0.03 |
| f0 | 13 |
| Da min | 213 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
INSOCOAT deep groove ball bearings
| Parameter | Value |
|---|---|
| d | 110 |
| D | 240 |
| B | 50 |
| Dynamic | 203 |
| Static | 180 |
| Load limit | 5.7 |
| Reference speed | 6000 |
| Limiting speed | 3800 |
| Mass | 9.65 |
| d1 | 149 |
| D1 | – |
| D2 | 207 |
| r1,2 | 3 |
| da min | 124 |
| da max | – |
| Da max | 226 |
| ra max | 2.5 |
| kr | 0.03 |
| f0 | 13 |
| Da min | 213 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 6322/C3VL0241.
