Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

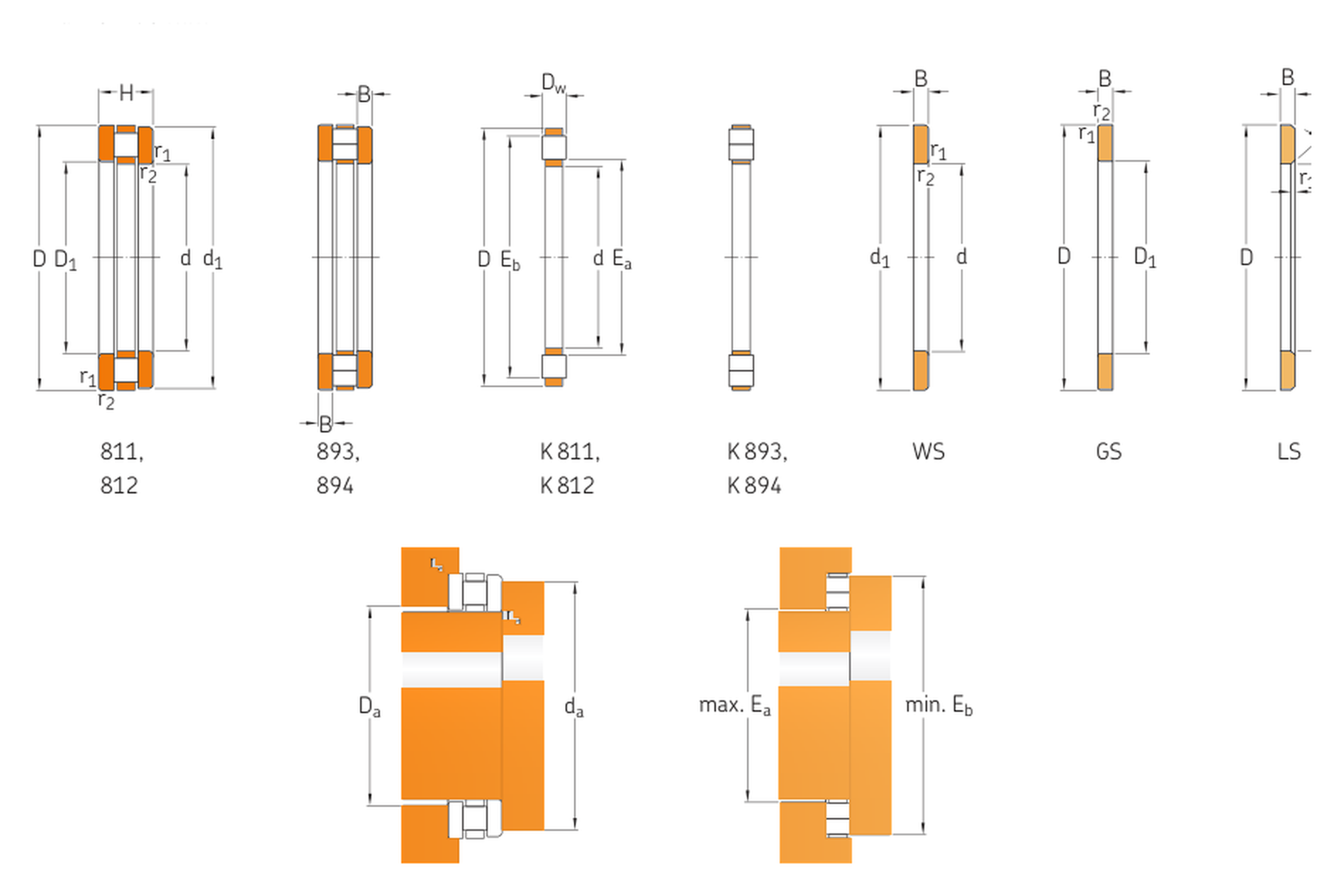

| Parameter | Value |
|---|---|
| d | 190 |
| D | 380 |
| B | 38.5 |
| Dynamic | 1960 |
| Static | 9000 |
| Load limit | 720 |
| Reference speed | 380 |
| Limiting speed | 750 |
| Mass | 65.5 |
| d1 | 380 |
| D1 | 195 |
| r1,2 | 5 |
| da min | 373 |
| Da max | 214 |
| ra max | 5 |
| H | 115 |
| Minimum load factor | 6.5 |
| Ea min | 212 |
| Eb max | 371 |
| Dw | 38 |
| Cylindrical roller and cage thrust assembly | K 89438 M |
| Shaft washer | WS 89438 |
| Housing washer | GS 89438 |
| Universal washer | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
