Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 40 |
| D | 80 |
| B | 18 |
| Dynamic | 30.7 |
| Static | 19 |
| Load limit | 0.8 |
| Limiting speed | 5600 |
| Mass | 0.45 |

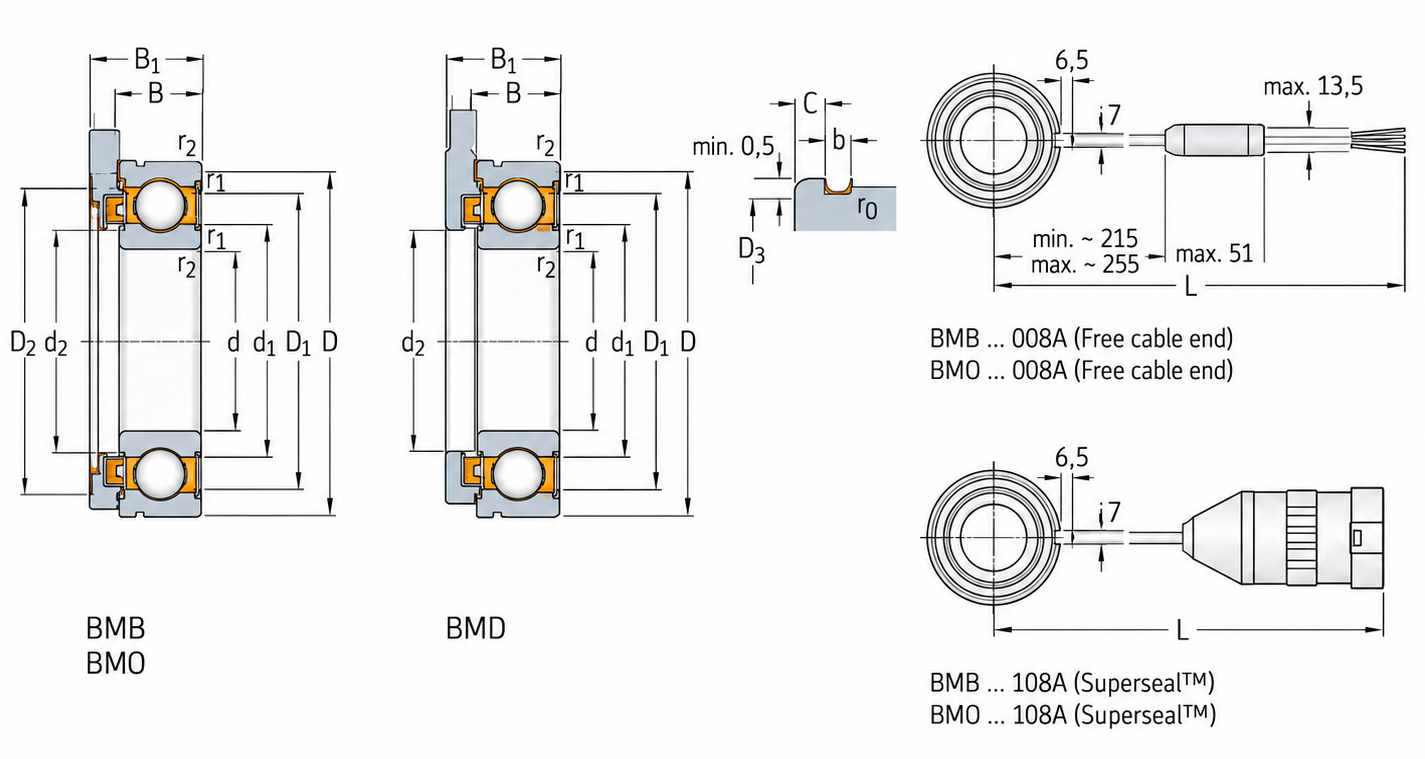

| d1 | 52.6 |
| d2 | 48 |
| D1 | 69.8 |
| D2 | 75.06 |
| r1,2 | 1.1 |
| Da max | 73 |
| ra max | 1 |
| kr | 0.025 |
| f0 | 14 |
| b | 1.9 |
| r0 | 0.6 |
| C | 3.28 |
| da, db min | 46.5 |
| db max | 47.4 |
| D3 | 76.81 |
| B1 | 24.2 |
| No. of pulses | 80 |
| Period accuracy | ±5 |
| Phase shift output signal | 90 ±30 |
| Cable length | 545 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
