CARB toroidal roller bearings · Designation: C 3136
Parameters as recorded in the source. Missing values are shown as a dash.

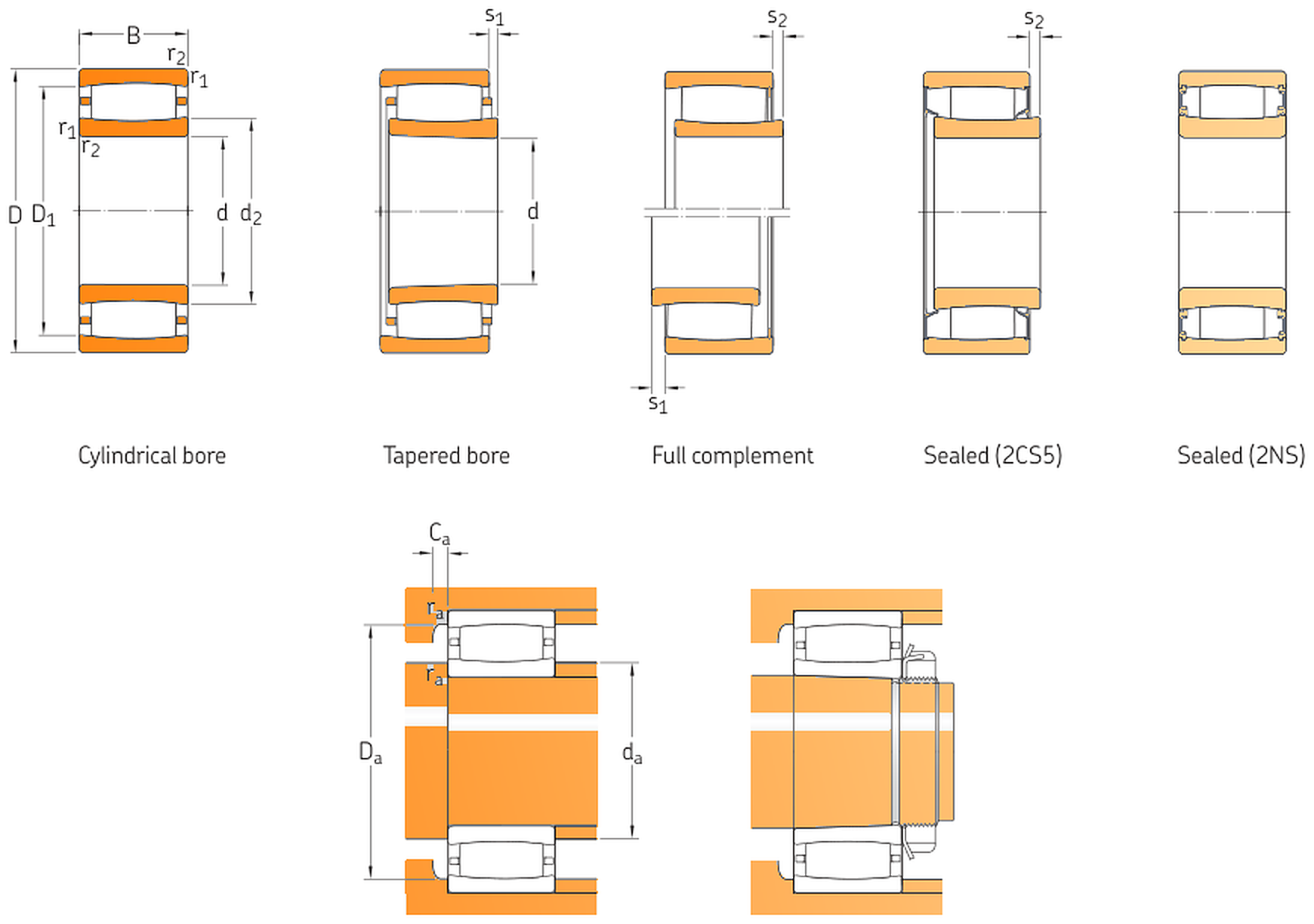

| Parameter | Value |
|---|---|
| d | 180 |
| D | 300 |
| B | 96 |
| Dynamic | 1250 |
| Static | 1730 |
| Load limit | 156 |
| Reference speed | 1700 |
| Limiting speed | 2400 |
| Mass | 26.5 |
| d2 | 210 |
| D1 | 266 |
| r1,2 | 3 |
| da min | 194 |
| da max | 231 |
| Da max | 286 |
| ra max | 2.5 |
| Da min | 252 |
| Ca min | 2.2 |
| s1 max | 23.2 |
| s2 max | – |
| k1 | 0.102 |
| k2 | 0.111 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
CARB toroidal roller bearings
| Parameter | Value |
|---|---|
| d | 180 |
| D | 300 |
| B | 96 |
| Dynamic | 1250 |
| Static | 1730 |
| Load limit | 156 |
| Reference speed | 1700 |
| Limiting speed | 2400 |
| Mass | 26.5 |
| d2 | 210 |
| D1 | 266 |
| r1,2 | 3 |
| da min | 194 |
| da max | 231 |
| Da max | 286 |
| ra max | 2.5 |
| Da min | 252 |
| Ca min | 2.2 |
| s1 max | 23.2 |
| s2 max | – |
| k1 | 0.102 |
| k2 | 0.111 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: C 3136.
