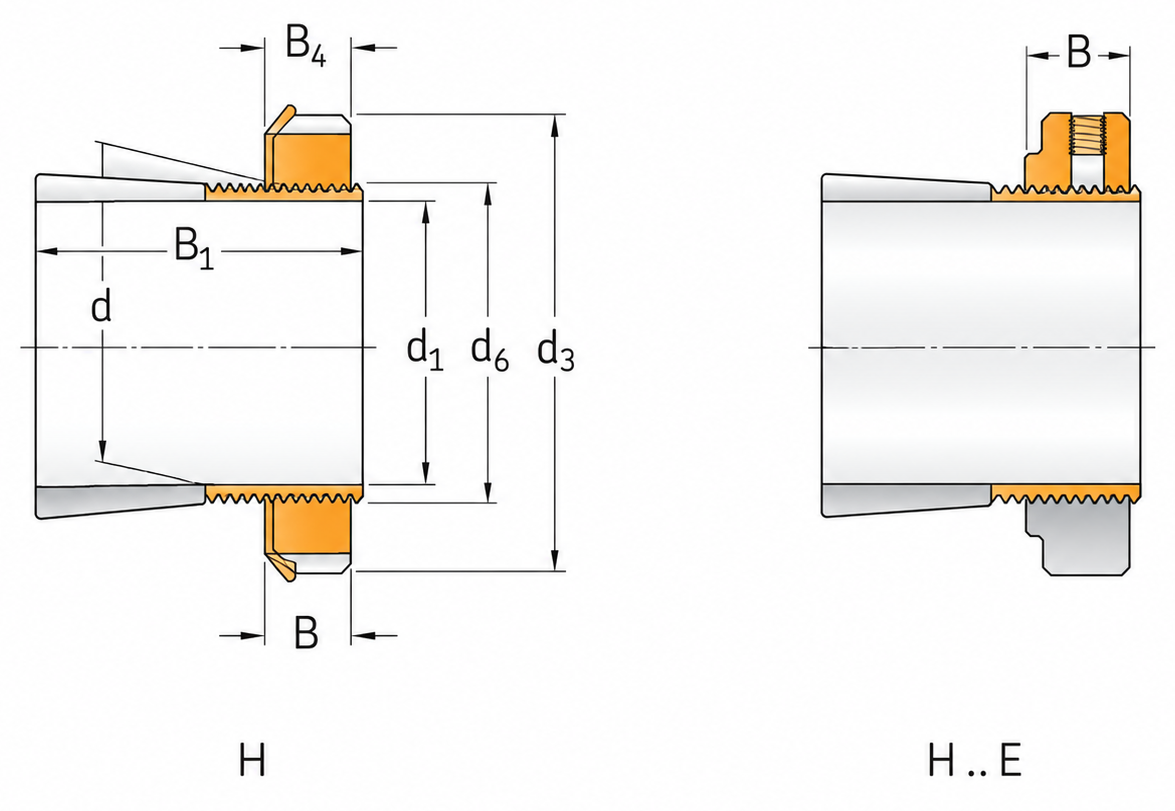

Adapter sleeves for metric shafts · Designation: H 304 E
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 20 |
| B | 10.5 |
| Mass | 0.047 |
| d1 | 17 |
| B1 | 28 |
| d3 | 38 |
| A | – |
| G | M 20x1 |
| B4 | – |
| B5 | – |
| G2 | – |
| G3 | – |
| Lock nut | KMFE 4 |
| Locking device | – |
| Hydraulic nut | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Adapter sleeves for metric shafts
| Parameter | Value |
|---|---|
| d | 20 |
| B | 10.5 |
| Mass | 0.047 |
| d1 | 17 |
| B1 | 28 |
| d3 | 38 |
| A | – |
| G | M 20x1 |
| B4 | – |
| B5 | – |
| G2 | – |
| G3 | – |
| Lock nut | KMFE 4 |
| Locking device | – |
| Hydraulic nut | – |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: H 304 E.
