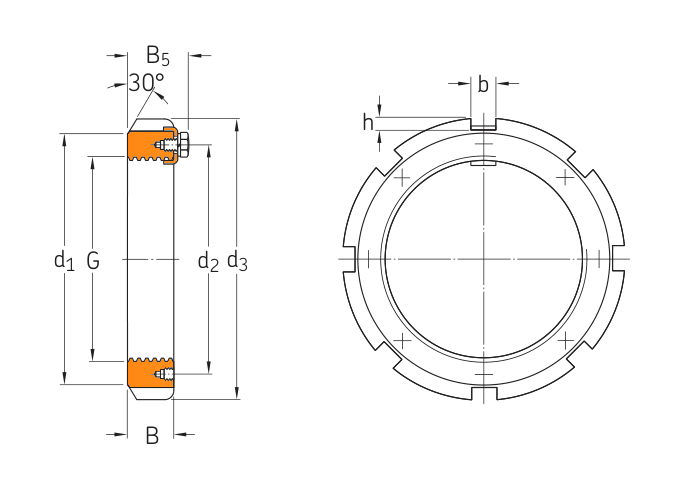

HM lock nuts · Designation: HM 3192
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| B | 75 |
| Mass | 50.5 |
| d1 | 540 |
| d2 | 498 |
| h | 20 |
| b | 36 |
| d3 | 580 |
| G | Tr 460x5 |
| B5 | 95 |
| Spanner | TMFN 80-500 |
| Locking clip | MS 3192-88 |
| Eye bolt | M 10 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
HM lock nuts
| Parameter | Value |
|---|---|
| B | 75 |
| Mass | 50.5 |
| d1 | 540 |
| d2 | 498 |
| h | 20 |
| b | 36 |
| d3 | 580 |
| G | Tr 460x5 |
| B5 | 95 |
| Spanner | TMFN 80-500 |
| Locking clip | MS 3192-88 |
| Eye bolt | M 10 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: HM 3192.
