ICOS oil sealed bearing units · Designation: ICOS-D1B04 TN9
Parameters as recorded in the source. Missing values are shown as a dash.

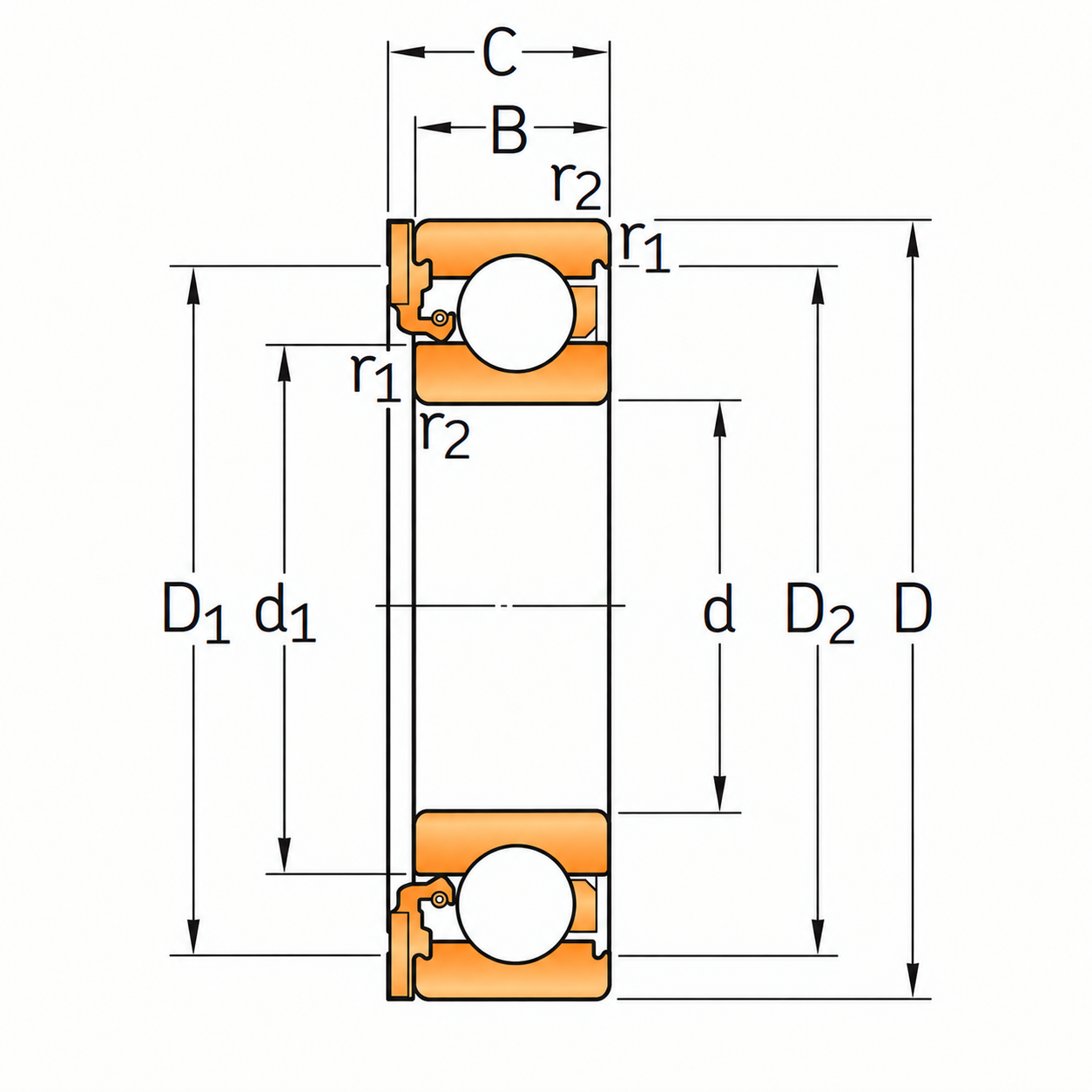

| Parameter | Value |
|---|---|
| d | 20 |
| D | 47 |
| B | 14 |
| Dynamic | 13.5 |
| Static | 6.55 |
| Load limit | 0.28 |
| Limiting speed | 9300 |
| Mass | 0.11 |
| d1 | 28.8 |
| D1 | 42 |
| D2 | 40.6 |
| r1,2 | 1 |
| da max | 28.8 |
| Da max | 41.4 |
| ra max | 1 |
| kr | 0.025 |
| f0 | 13 |
| C | 16.2 |
| da, db min | 25.6 |
| db max | 28.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
ICOS oil sealed bearing units
| Parameter | Value |
|---|---|
| d | 20 |
| D | 47 |
| B | 14 |
| Dynamic | 13.5 |
| Static | 6.55 |
| Load limit | 0.28 |
| Limiting speed | 9300 |
| Mass | 0.11 |
| d1 | 28.8 |
| D1 | 42 |
| D2 | 40.6 |
| r1,2 | 1 |
| da max | 28.8 |
| Da max | 41.4 |
| ra max | 1 |
| kr | 0.025 |
| f0 | 13 |
| C | 16.2 |
| da, db min | 25.6 |
| db max | 28.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: ICOS-D1B04 TN9.
