Needle roller and cage assemblies · Designation: K 55x60x30
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| Dynamic | 39.6 |
| Static | 108 |
| Load limit | 13.4 |
| Reference speed | 7500 |
| Limiting speed | 8500 |
| Mass | 0.071 |

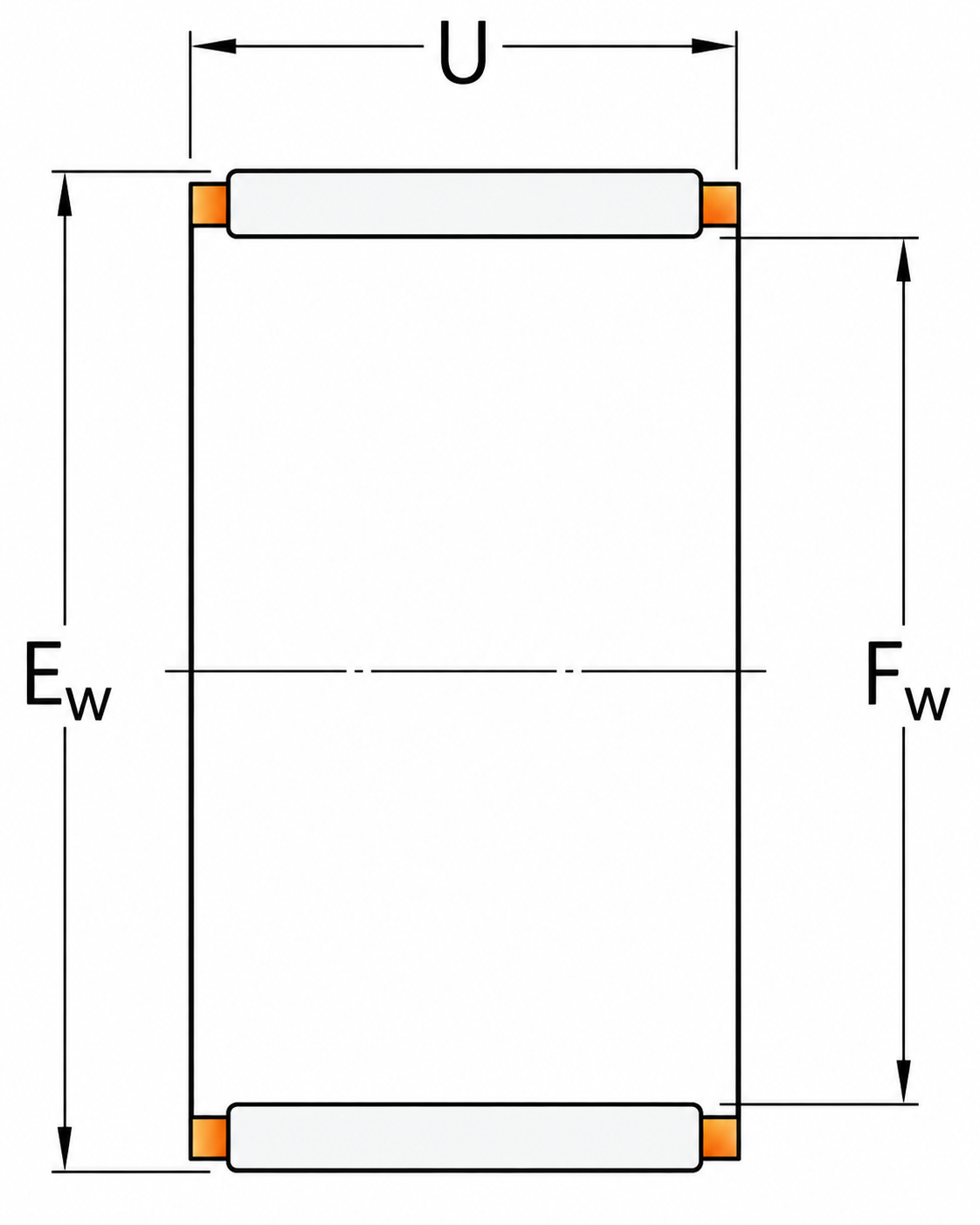

| Fw | 55 |
| Ew | 60 |
| U | 30 |
| Radial shaft seal | – |
| Radial shaft seal#2 | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Needle roller and cage assemblies
| Parameter | Value |
|---|---|
| Dynamic | 39.6 |
| Static | 108 |
| Load limit | 13.4 |
| Reference speed | 7500 |
| Limiting speed | 8500 |
| Mass | 0.071 |
| Fw | 55 |
| Ew | 60 |
| U | 30 |
| Radial shaft seal | – |
| Radial shaft seal#2 | – |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: K 55x60x30.
