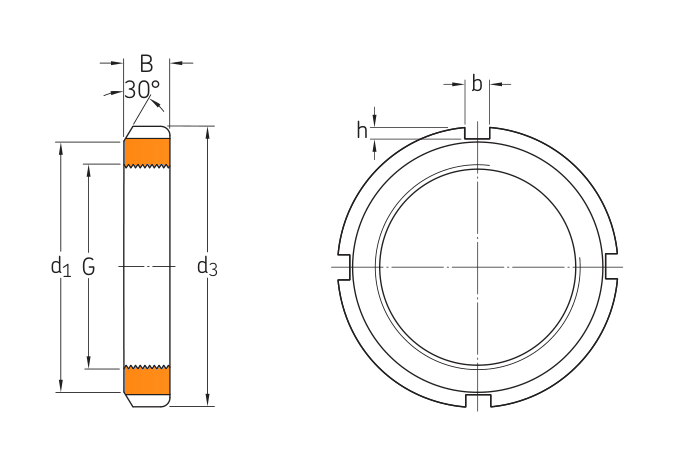

KM(L) and HM .. T lock nuts · Designation: KM 2
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| B | 5 |
| Static | 14.6 |
| Mass | 0.009 |
| d1 | 21 |
| h | 2 |
| b | 4 |
| d3 | 25 |
| G | M 15x1 |
| Lock washer | MB 2 |
| Spanner | HN 2-3 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
KM(L) and HM .. T lock nuts
| Parameter | Value |
|---|---|
| B | 5 |
| Static | 14.6 |
| Mass | 0.009 |
| d1 | 21 |
| h | 2 |
| b | 4 |
| d3 | 25 |
| G | M 15x1 |
| Lock washer | MB 2 |
| Spanner | HN 2-3 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: KM 2.
