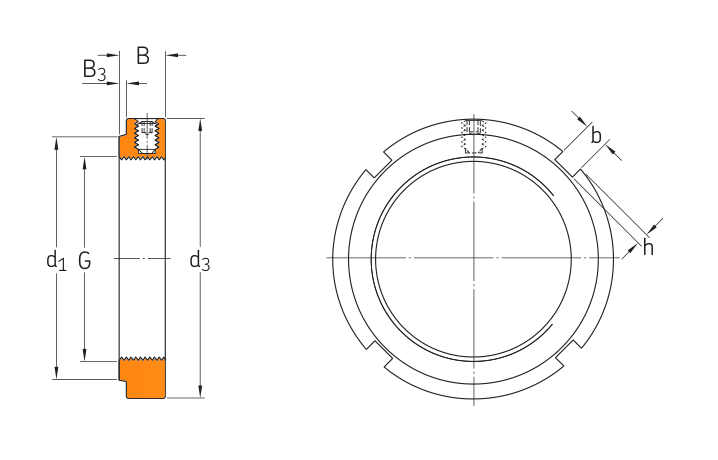

KMFE lock nuts with a locking screw · Designation: KMFE 4
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| B | 9.5 |
| Static | 24 |
| Mass | 0.034 |
| d1 | 26 |
| h | 2 |
| b | 4 |
| d3 | 32 |
| B3 | 1 |
| G | M 20x1 |
| Spanner | HN 4 |
| Grub screw | M5 |
| Grub screw torque | 4.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
KMFE lock nuts with a locking screw
| Parameter | Value |
|---|---|
| B | 9.5 |
| Static | 24 |
| Mass | 0.034 |
| d1 | 26 |
| h | 2 |
| b | 4 |
| d3 | 32 |
| B3 | 1 |
| G | M 20x1 |
| Spanner | HN 4 |
| Grub screw | M5 |
| Grub screw torque | 4.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: KMFE 4.
