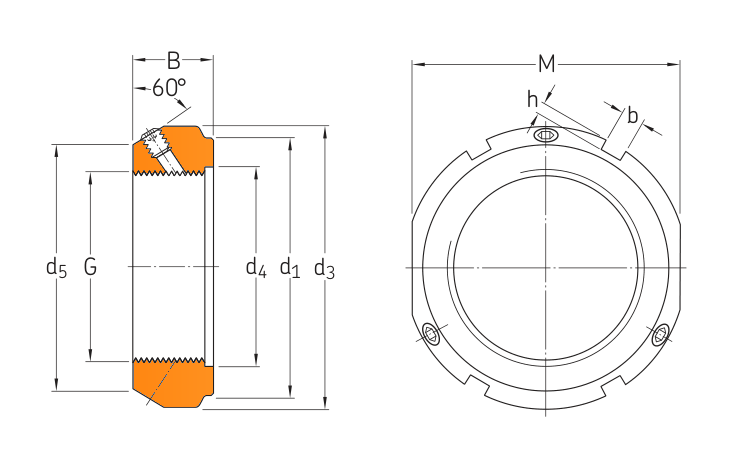

KMT precision lock nuts with locking pins · Designation: KMT 0
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| B | 14 |
| Static | 35 |
| Mass | 0.045 |
| d1 | 23 |
| h | 2 |
| b | 4 |
| d3 | 28 |
| G | M 10x0,75 |
| M | 24 |
| Spanner | HN 2-3 |
| Grub screw | M 5 |
| Grub screw torque | 4.5 |
| d4 | 11 |
| d5 | 21 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
KMT precision lock nuts with locking pins
| Parameter | Value |
|---|---|
| B | 14 |
| Static | 35 |
| Mass | 0.045 |
| d1 | 23 |
| h | 2 |
| b | 4 |
| d3 | 28 |
| G | M 10x0,75 |
| M | 24 |
| Spanner | HN 2-3 |
| Grub screw | M 5 |
| Grub screw torque | 4.5 |
| d4 | 11 |
| d5 | 21 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: KMT 0.
