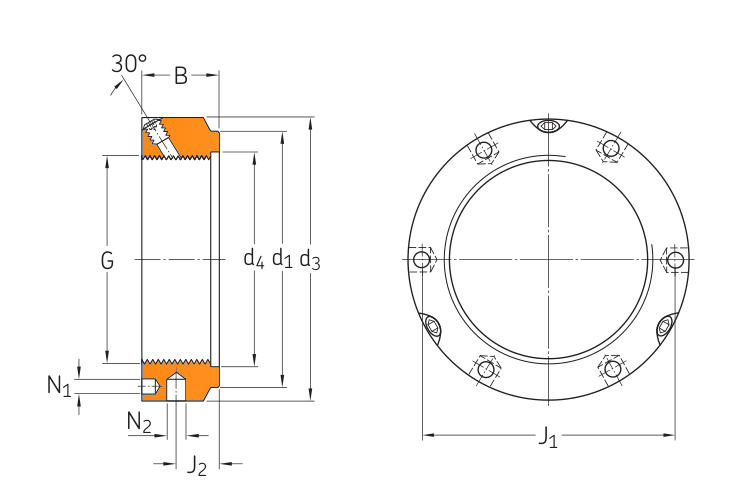

KMTA precision lock nuts with locking pins · Designation: KMTA 5
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| B | 20 |
| Static | 130 |
| Mass | 0.13 |
| d1 | 35 |
| d3 | 42 |
| G | M 25x1,5 |
| Spanner | B 40-42 |
| Grub screw | M 6 |
| Grub screw torque | 8 |
| d4 | 26 |
| J1 | 32.5 |
| J2 | 11 |
| N1 | 4.3 |
| N2 | 4 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
