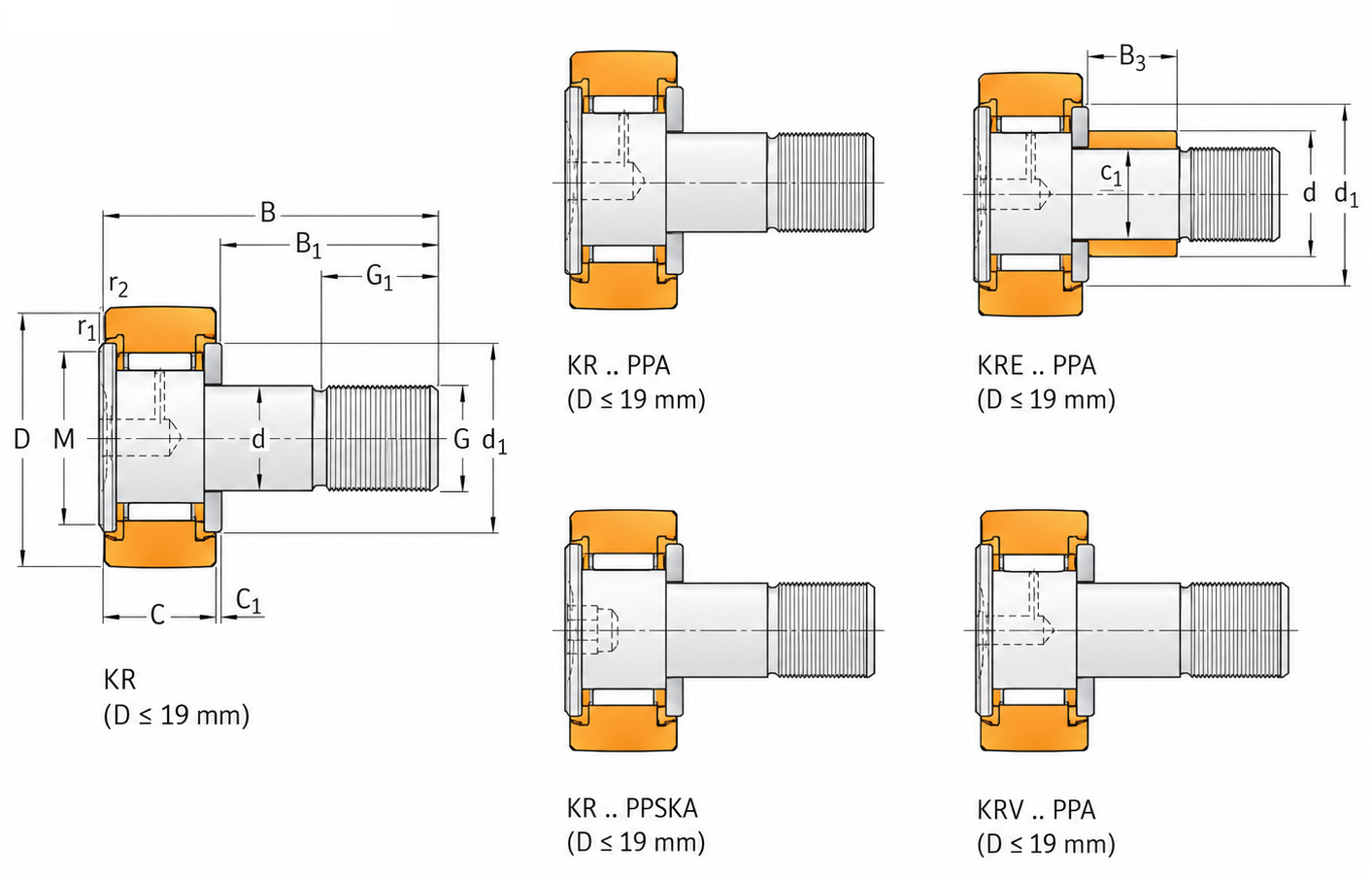

Cam followers · Designation: KR 32 B
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 12 |
| D | 32 |
| B | 40 |
| Dynamic | 6.71 |
| Static | 8.5 |
| Load limit | 0.95 |
| Limiting speed | 4800 |
| Mass | 0.1 |
| d1 | 23 |
| r1,2 | 0.6 |
| C | 14 |
| B1 | 25 |
| C1 | 0.6 |
| B2 | 6 |
| Fr max | 10.6 |
| F0r max | 15 |
| B3 | – |
| G | M 12x1,5 |
| G1 | 13 |
| M | 4 |
| M1 | 3 |
| SW | 6 |
| c | – |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Cam followers
| Parameter | Value |
|---|---|
| d | 12 |
| D | 32 |
| B | 40 |
| Dynamic | 6.71 |
| Static | 8.5 |
| Load limit | 0.95 |
| Limiting speed | 4800 |
| Mass | 0.1 |
| d1 | 23 |
| r1,2 | 0.6 |
| C | 14 |
| B1 | 25 |
| C1 | 0.6 |
| B2 | 6 |
| Fr max | 10.6 |
| F0r max | 15 |
| B3 | – |
| G | M 12x1,5 |
| G1 | 13 |
| M | 4 |
| M1 | 3 |
| SW | 6 |
| c | – |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: KR 32 B.
