MS locking clips · Designation: MS 30/710
Parameters as recorded in the source. Missing values are shown as a dash.

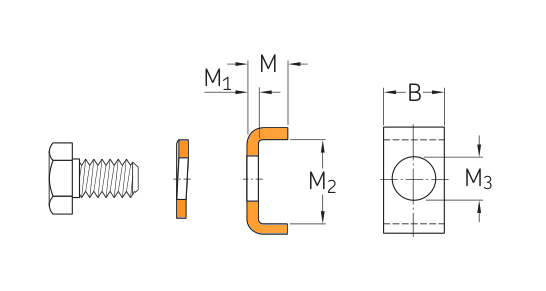

| Parameter | Value |
|---|---|
| B | 50 |
| Mass | 0.21 |
| M | 21 |
| M1 | 7 |
| Hexagonal head bolt | M 16x30 |
| Spring washer | A 16 |
| M2 | 39 |
| M3 | 18 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
MS locking clips
| Parameter | Value |
|---|---|
| B | 50 |
| Mass | 0.21 |
| M | 21 |
| M1 | 7 |
| Hexagonal head bolt | M 16x30 |
| Spring washer | A 16 |
| M2 | 39 |
| M3 | 18 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: MS 30/710.
