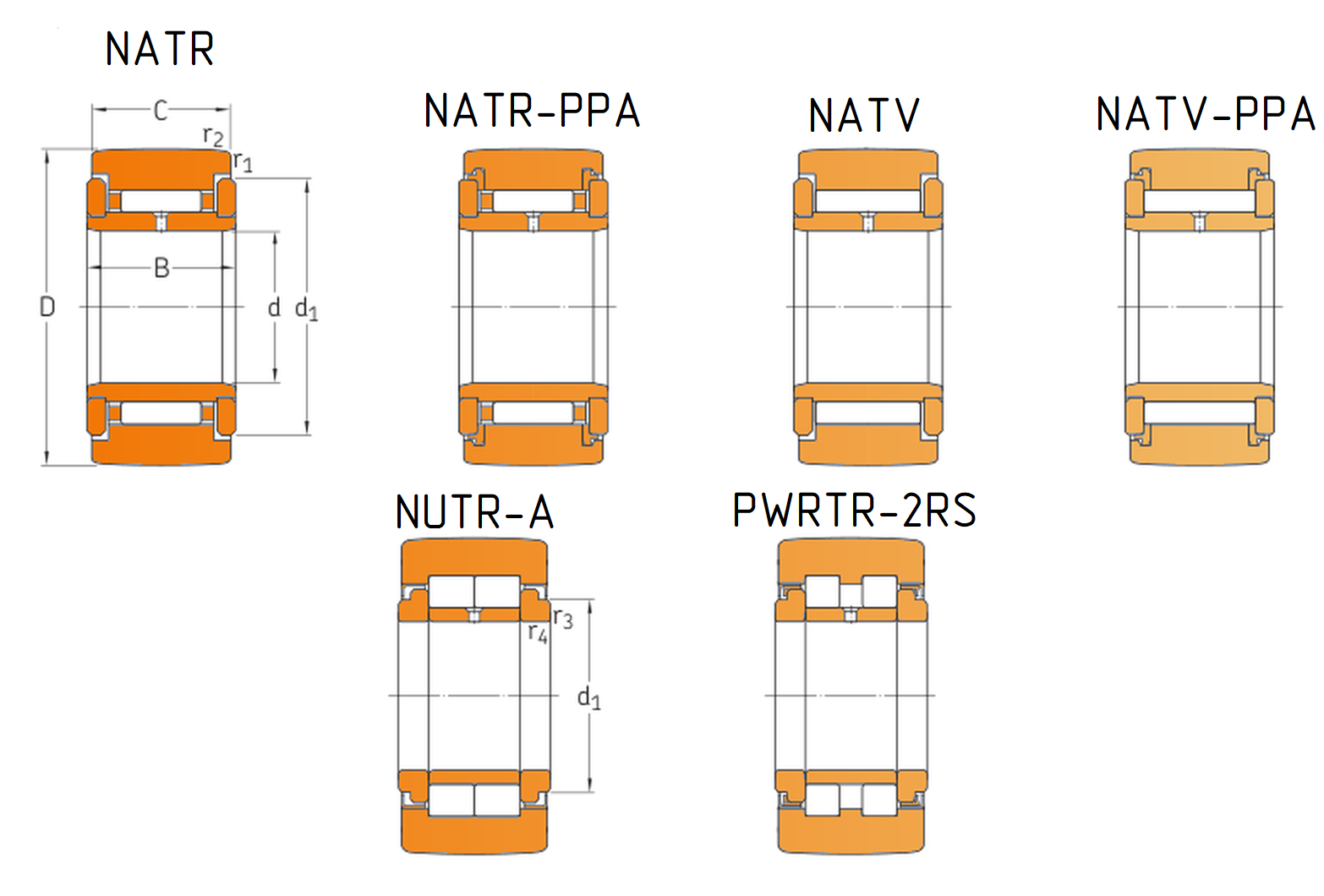

Support rollers with flange rings, with an inner ring · Designation: NATV 10
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 10 |
| D | 30 |
| B | 15 |
| Dynamic | 8.97 |
| Static | 14.6 |
| Load limit | 1.66 |
| Limiting speed | 3200 |
| Mass | 0.065 |
| d1 | 23 |
| r1,2 | 0.6 |
| C | 14 |
| r3,4 | – |
| Fr max | 11 |
| F0r max | 15.6 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Support rollers with flange rings, with an inner ring
| Parameter | Value |
|---|---|
| d | 10 |
| D | 30 |
| B | 15 |
| Dynamic | 8.97 |
| Static | 14.6 |
| Load limit | 1.66 |
| Limiting speed | 3200 |
| Mass | 0.065 |
| d1 | 23 |
| r1,2 | 0.6 |
| C | 14 |
| r3,4 | – |
| Fr max | 11 |
| F0r max | 15.6 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NATV 10.
