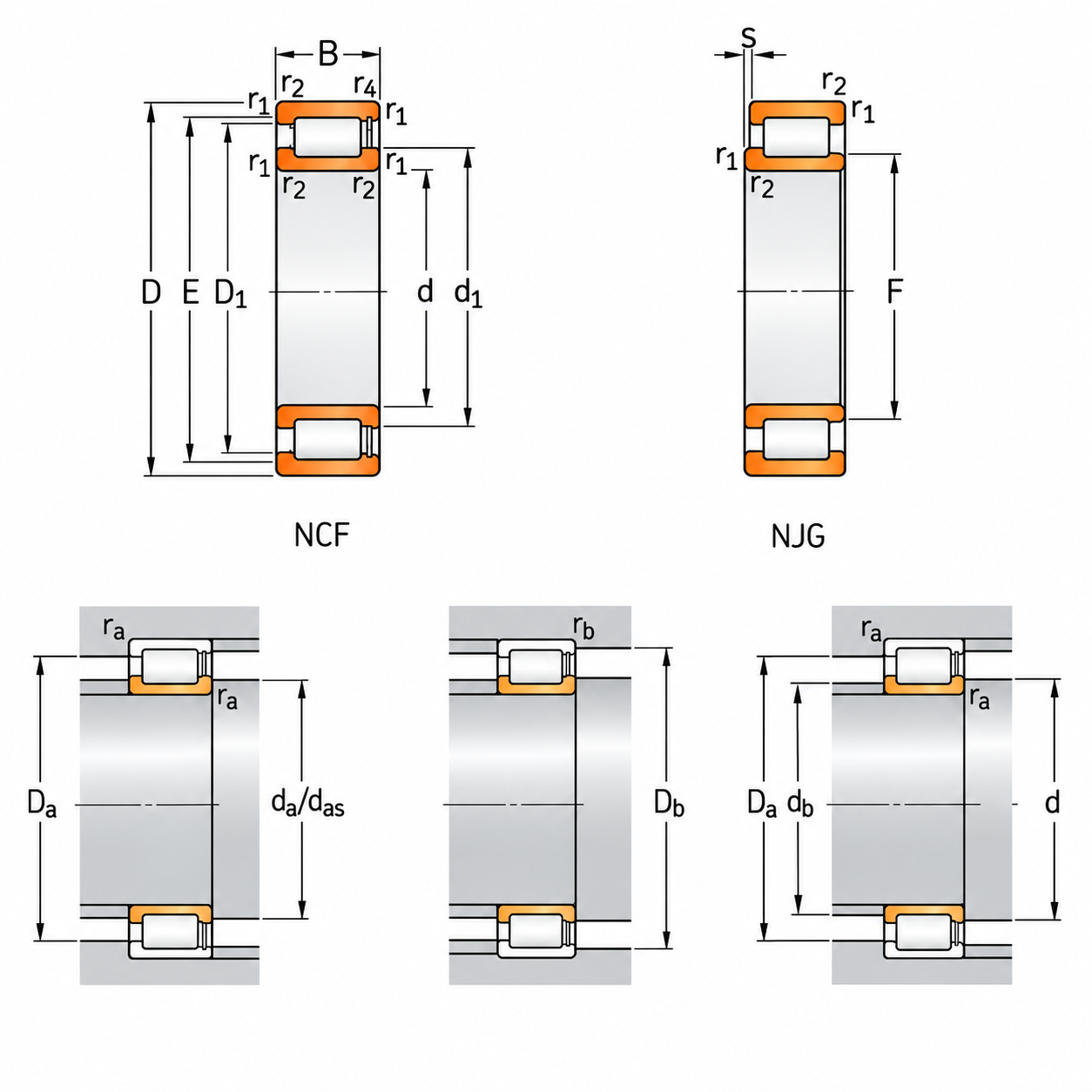

Single row full complement cylindrical roller bearings · Designation: NCF 1844 V
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 220 |
| D | 270 |
| B | 24 |
| Dynamic | 183 |
| Static | 365 |
| Load limit | 34.5 |
| Reference speed | 1000 |
| Limiting speed | 1200 |
| Mass | 2.85 |
| d1 | 238 |
| D1 | 252 |
| r1,2 | 1.5 |
| da min | 227 |
| Da max | 263 |
| ra max | 1.5 |
| kr | 0.1 |
| db max | – |
| r3,4 | 1.1 |
| Db max | 264 |
| rb max | 1 |
| s | 1.8 |
| E,F | 258 |
| das | 235 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Single row full complement cylindrical roller bearings
| Parameter | Value |
|---|---|
| d | 220 |
| D | 270 |
| B | 24 |
| Dynamic | 183 |
| Static | 365 |
| Load limit | 34.5 |
| Reference speed | 1000 |
| Limiting speed | 1200 |
| Mass | 2.85 |
| d1 | 238 |
| D1 | 252 |
| r1,2 | 1.5 |
| da min | 227 |
| Da max | 263 |
| ra max | 1.5 |
| kr | 0.1 |
| db max | – |
| r3,4 | 1.1 |
| Db max | 264 |
| rb max | 1 |
| s | 1.8 |
| E,F | 258 |
| das | 235 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NCF 1844 V.
