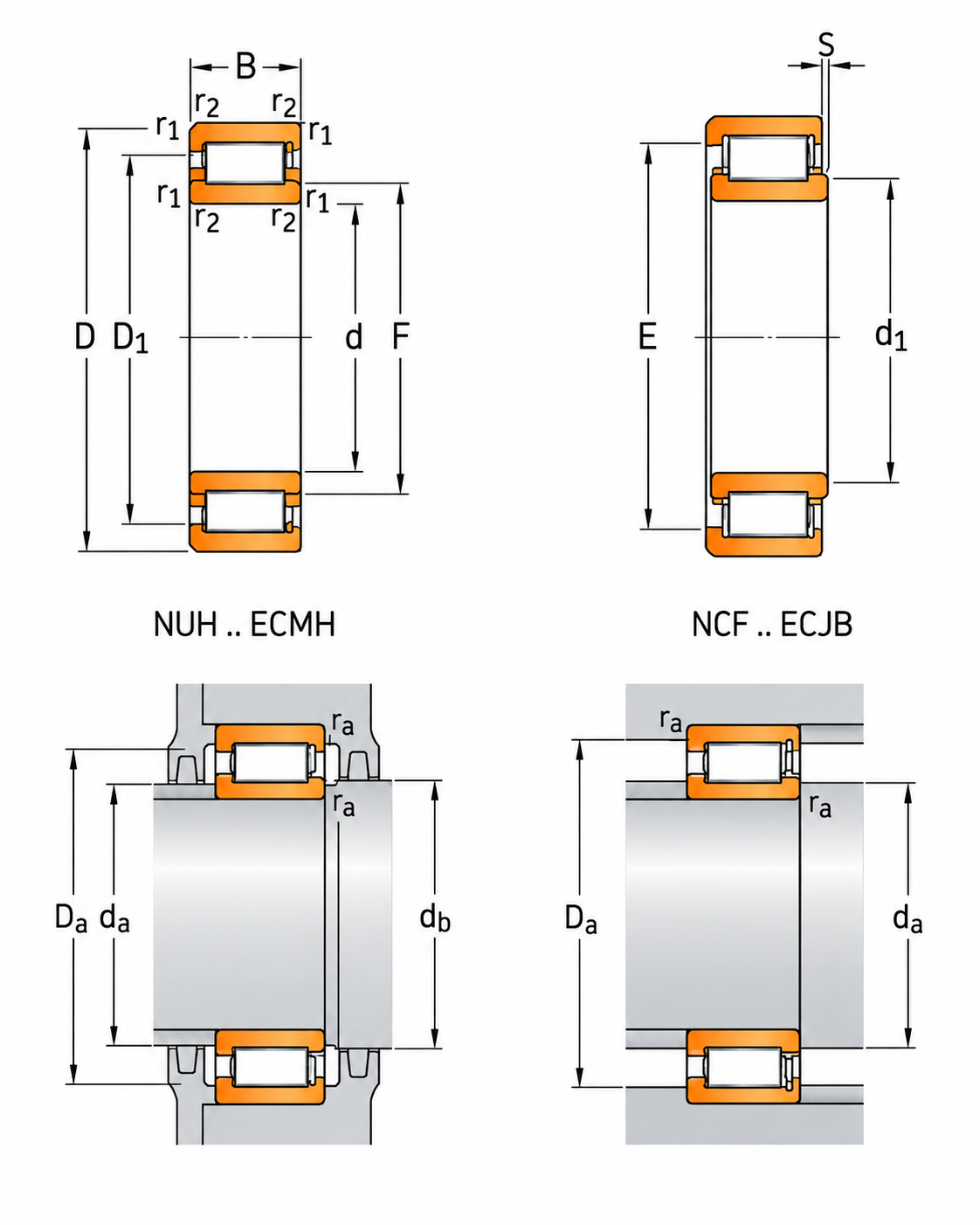

High-capacity cylindrical roller bearings · Designation: NCF 2240 ECJB
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 200 |
| D | 360 |
| B | 98 |
| Dynamic | 1460 |
| Static | 2000 |
| Load limit | 200 |
| Reference speed | 1900 |
| Limiting speed | 2400 |
| Mass | 43 |
| d1 | 256 |
| D1 | 312 |
| r1,2 | 4 |
| da min | 217 |
| da max | 249 |
| Da max | 341 |
| ra max | 3 |
| kr | 0.16 |
| db min | – |
| s | 5.1 |
| F,E | 325 |
| Da min | 318 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
High-capacity cylindrical roller bearings
| Parameter | Value |
|---|---|
| d | 200 |
| D | 360 |
| B | 98 |
| Dynamic | 1460 |
| Static | 2000 |
| Load limit | 200 |
| Reference speed | 1900 |
| Limiting speed | 2400 |
| Mass | 43 |
| d1 | 256 |
| D1 | 312 |
| r1,2 | 4 |
| da min | 217 |
| da max | 249 |
| Da max | 341 |
| ra max | 3 |
| kr | 0.16 |
| db min | – |
| s | 5.1 |
| F,E | 325 |
| Da min | 318 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NCF 2240 ECJB.
