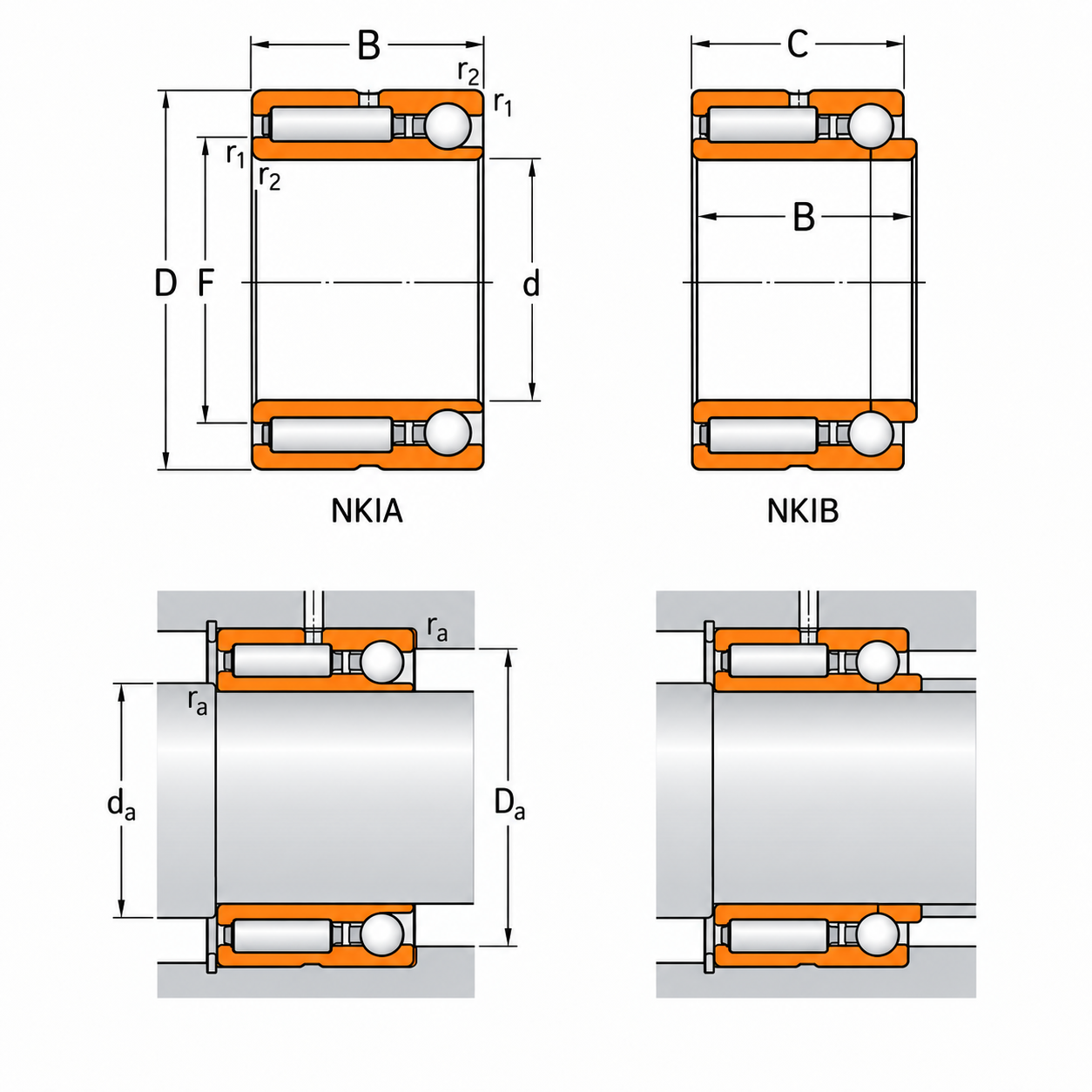

Needle roller / angular contact ball bearings · Designation: NKIB 5902
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 15 |
| D | 28 |
| B | 20 |
| Dynamic | 11.2 |
| Static | 15.3 |
| Load limit | 1.83 |
| Reference speed | 19000 |
| Limiting speed | 22000 |
| Mass | 0.052 |
| r1,2 | 0.3 |
| da min | 17 |
| Da max | 26 |
| ra max | 0.3 |
| C | 18 |
| F | 20 |
| Dynamic axial | 2.27 |
| Static axial | 2.37 |
| Load limit axial | 0.099 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Needle roller / angular contact ball bearings
| Parameter | Value |
|---|---|
| d | 15 |
| D | 28 |
| B | 20 |
| Dynamic | 11.2 |
| Static | 15.3 |
| Load limit | 1.83 |
| Reference speed | 19000 |
| Limiting speed | 22000 |
| Mass | 0.052 |
| r1,2 | 0.3 |
| da min | 17 |
| Da max | 26 |
| ra max | 0.3 |
| C | 18 |
| F | 20 |
| Dynamic axial | 2.27 |
| Static axial | 2.37 |
| Load limit axial | 0.099 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NKIB 5902.
