Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

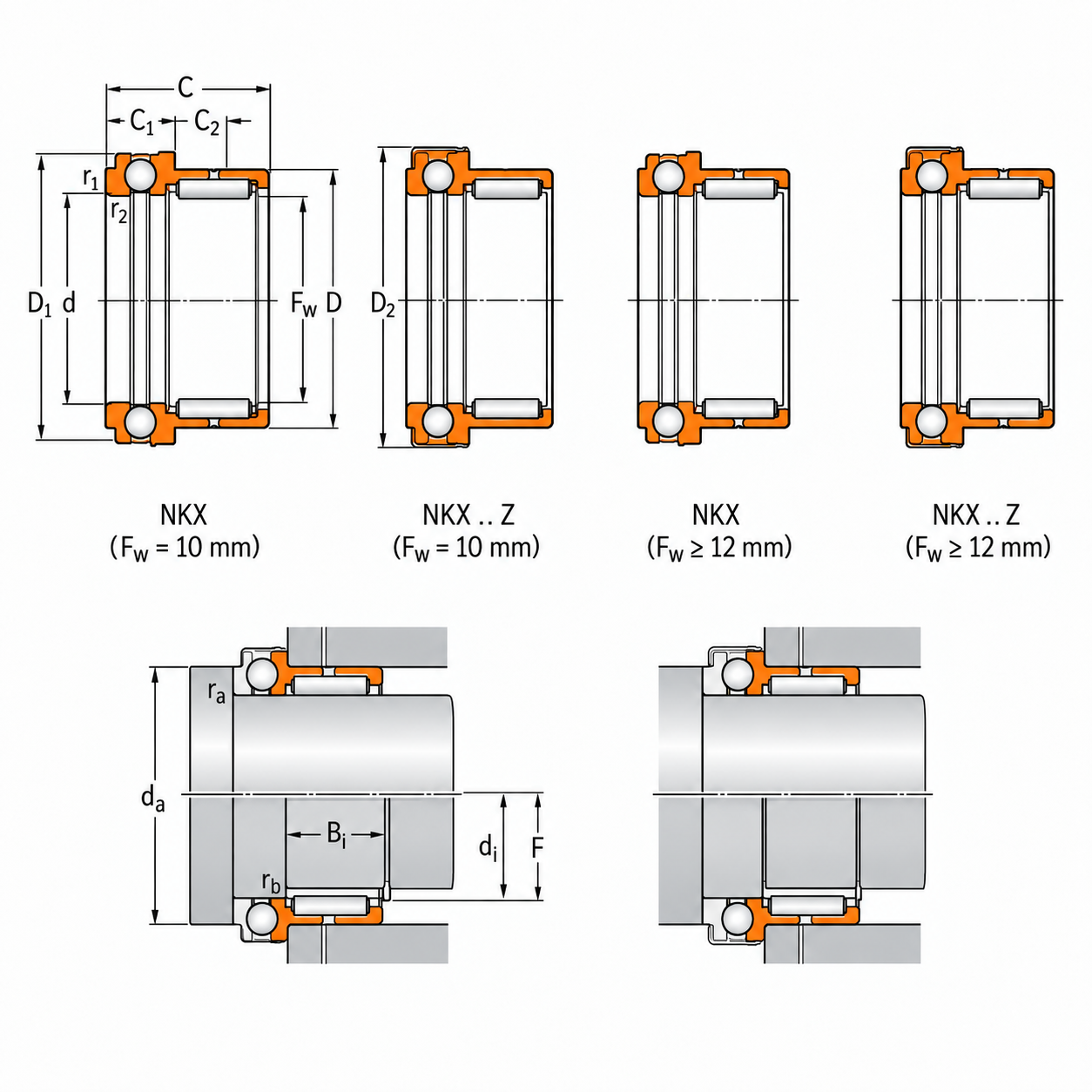

| Parameter | Value |
|---|---|
| d | 12 |
| D | 21 |
| Dynamic | 9.13 |
| Static | 12 |
| Load limit | 1.43 |
| Reference speed | 9000 |
| Limiting speed | 13000 |
| Mass | 0.038 |
| D1 | 26.1 |
| D2 | – |
| r1,2 | 0.3 |
| da min | 21.7 |
| ra max | 0.3 |
| C | 23 |
| rb max | 0.3 |
| C1 | 9 |
| C2 | 6.5 |
| Fw | 12 |
| F | 12 |
| Dynamic axial | 10.4 |
| Static axial | 16.6 |
| Load limit axial | 0.62 |
| Minimum load factor | 0.0014 |
| di | 9 |
| Bi | 16 |
| Inner ring | IR 9x12x16 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
