Hybrid cylindrical roller bearings · Designation: NU 1009 ECP/HC5C3
Parameters as recorded in the source. Missing values are shown as a dash.

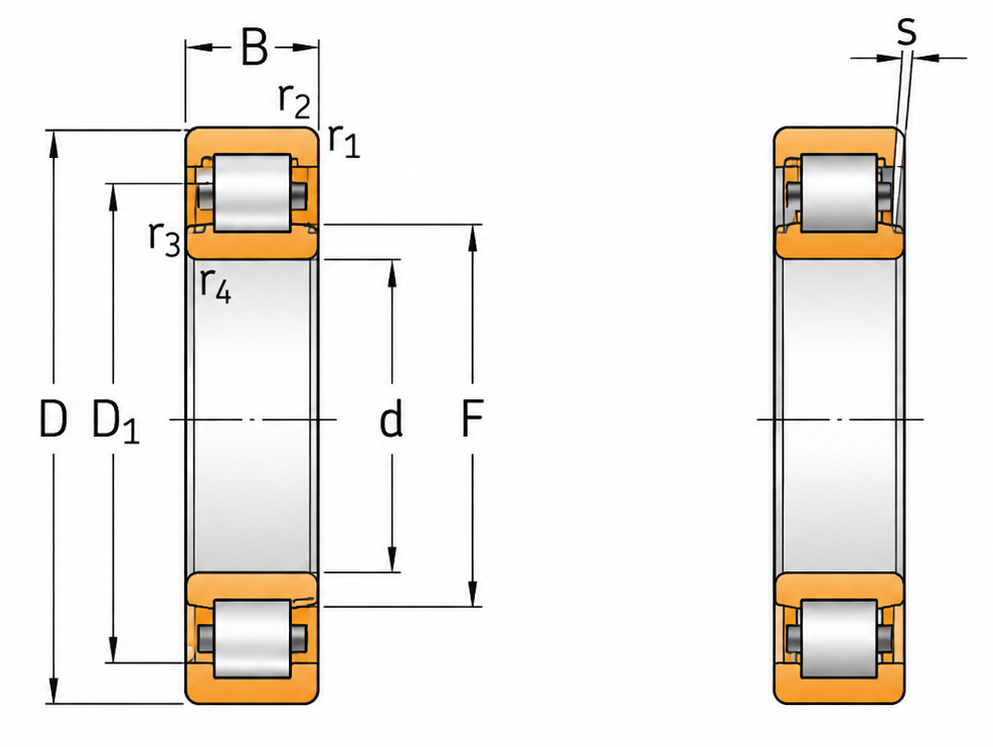

| Parameter | Value |
|---|---|
| d | 45 |
| D | 75 |
| B | 16 |
| Dynamic | 44.6 |
| Static | 52 |
| Load limit | 6.3 |
| Reference speed | 12000 |
| Limiting speed | 13000 |
| Mass | 0.19 |
| D1 | 65.3 |
| r1,2 | 1 |
| da min | 48.2 |
| da max | 51 |
| Da max | 70 |
| ra max | 1 |
| kr | 0.1 |
| r3,4 | 0.6 |
| rb max | 0.6 |
| db min | 54 |
| s | 0.9 |
| F | 52.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Hybrid cylindrical roller bearings
| Parameter | Value |
|---|---|
| d | 45 |
| D | 75 |
| B | 16 |
| Dynamic | 44.6 |
| Static | 52 |
| Load limit | 6.3 |
| Reference speed | 12000 |
| Limiting speed | 13000 |
| Mass | 0.19 |
| D1 | 65.3 |
| r1,2 | 1 |
| da min | 48.2 |
| da max | 51 |
| Da max | 70 |
| ra max | 1 |
| kr | 0.1 |
| r3,4 | 0.6 |
| rb max | 0.6 |
| db min | 54 |
| s | 0.9 |
| F | 52.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NU 1009 ECP/HC5C3.
