INSOCOAT cylindrical roller bearings · Designation: NU 1010 ECP/C3VL0241
Parameters as recorded in the source. Missing values are shown as a dash.

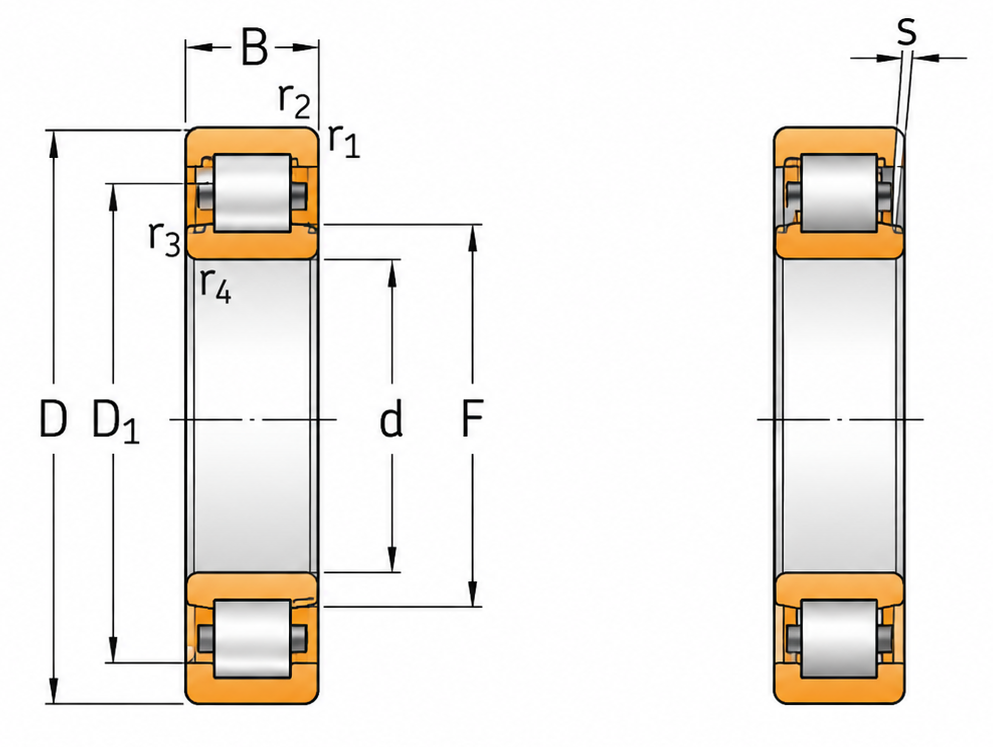

| Parameter | Value |
|---|---|
| d | 50 |
| D | 80 |
| B | 16 |
| Dynamic | 47.3 |
| Static | 57 |
| Load limit | 7.2 |
| Reference speed | 9500 |
| Limiting speed | 9500 |
| Mass | 0.27 |
| D1 | 70 |
| r1,2 | 1.1 |
| da min | 53.2 |
| da max | 56 |
| Da max | 75.4 |
| ra max | 1 |
| kr | 0.1 |
| r3,4 | 0.6 |
| rb max | 0.6 |
| db min | 60 |
| s | 1 |
| Da min | 74 |
| F | 57.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
INSOCOAT cylindrical roller bearings
| Parameter | Value |
|---|---|
| d | 50 |
| D | 80 |
| B | 16 |
| Dynamic | 47.3 |
| Static | 57 |
| Load limit | 7.2 |
| Reference speed | 9500 |
| Limiting speed | 9500 |
| Mass | 0.27 |
| D1 | 70 |
| r1,2 | 1.1 |
| da min | 53.2 |
| da max | 56 |
| Da max | 75.4 |
| ra max | 1 |
| kr | 0.1 |
| r3,4 | 0.6 |
| rb max | 0.6 |
| db min | 60 |
| s | 1 |
| Da min | 74 |
| F | 57.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: NU 1010 ECP/C3VL0241.
