Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

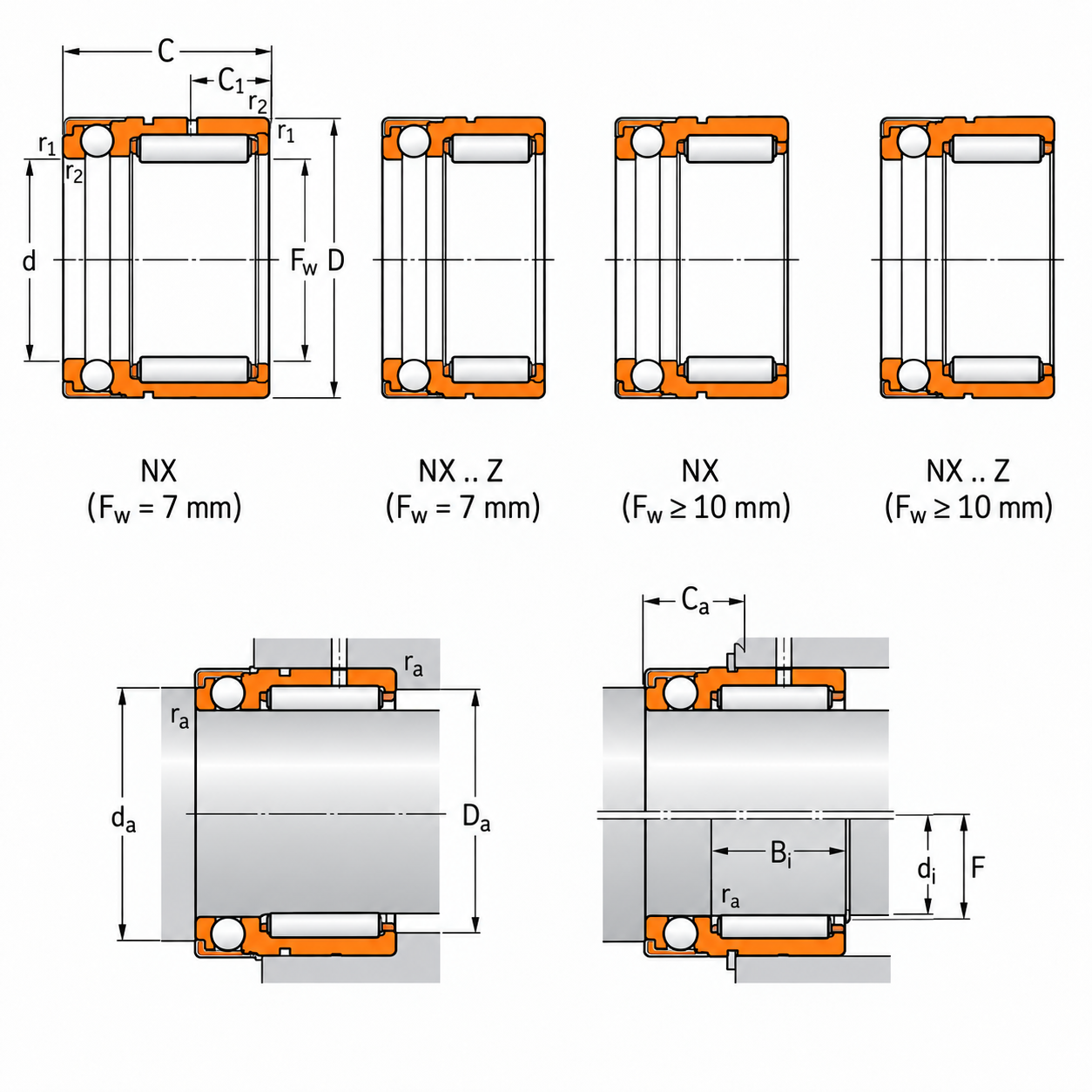

| Parameter | Value |
|---|---|
| d | 15 |
| D | 24 |
| Dynamic | 11 |
| Static | 14 |
| Load limit | 1.66 |
| Reference speed | 7500 |
| Limiting speed | 8500 |
| Mass | 0.048 |
| r1,2 | 0.3 |
| da min | 19 |
| Da max | 22 |
| ra max | 0.3 |
| C | 28 |
| Snap ring | SW 24 |
| C1 | 8 |
| Fw | 15 |
| F | 15 |
| Dynamic axial | 6.18 |
| Static axial | 12.2 |
| Load limit axial | 0.45 |
| Minimum load factor | 0.00077 |
| Ca | 12.2 |
| di | 12 |
| Bi | 16 |
| Inner ring | IR 12x15x16 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
