Alignment needle roller bearings, without an inner ring · Designation: RPNA 15/28
Parameters as recorded in the source. Missing values are shown as a dash.

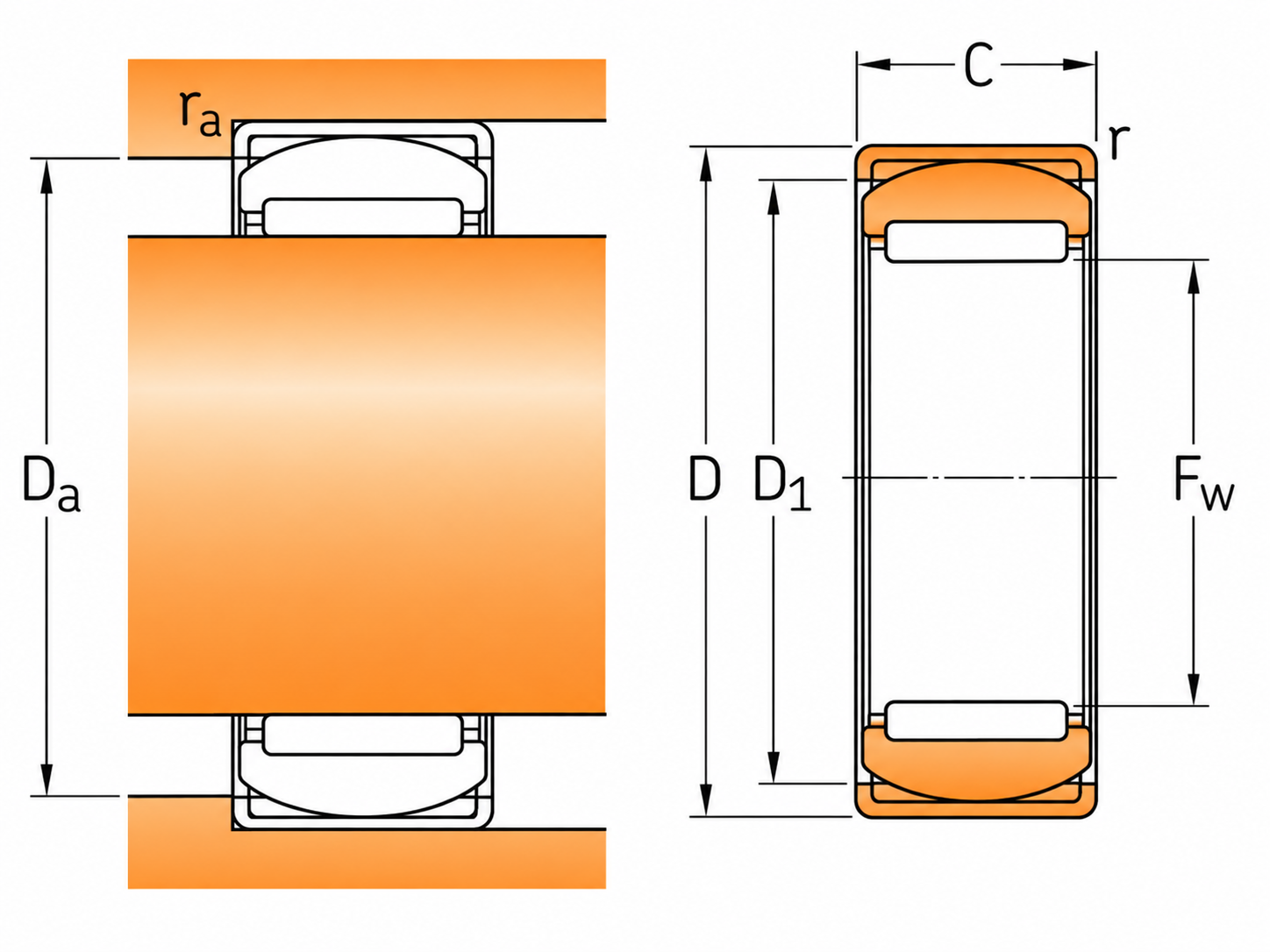

| Parameter | Value |
|---|---|
| D | 28 |
| Dynamic | 7.37 |
| Static | 9.15 |
| Load limit | 1.08 |
| Reference speed | 24000 |
| Limiting speed | 28000 |
| Mass | 0.032 |
| D1 | 24.5 |
| Da max | 24.5 |
| ra max | 0.8 |
| C | 12 |
| Da min | 23.5 |
| Fw | 15 |
| r min | 0.8 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Alignment needle roller bearings, without an inner ring
| Parameter | Value |
|---|---|
| D | 28 |
| Dynamic | 7.37 |
| Static | 9.15 |
| Load limit | 1.08 |
| Reference speed | 24000 |
| Limiting speed | 28000 |
| Mass | 0.032 |
| D1 | 24.5 |
| Da max | 24.5 |
| ra max | 0.8 |
| C | 12 |
| Da min | 23.5 |
| Fw | 15 |
| r min | 0.8 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: RPNA 15/28.
