Adapter sleeves with inch dimensions · Designation: SNW 11x2
Parameters as recorded in the source. Missing values are shown as a dash.

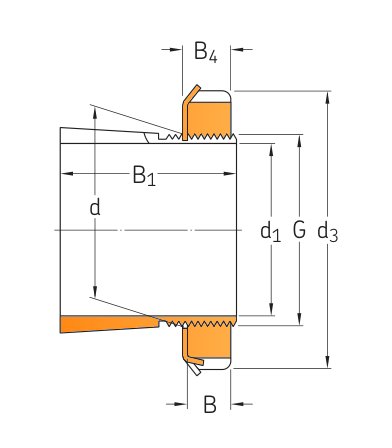

| Parameter | Value |
|---|---|
| d | 55 |
| B | 12.954 |
| Mass | 0.36 |
| d1 | 50.8 |
| B1 | 46.609 |
| d3 | 75.5396 |
| G | 54.7878 |
| B4 | 14.3002 |
| B5 | – |
| Lock nut | N 11 |
| Locking device | W 11 |
| Hydraulic nut | HMVC 11E |
| Threads per inch | 18 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Adapter sleeves with inch dimensions
| Parameter | Value |
|---|---|
| d | 55 |
| B | 12.954 |
| Mass | 0.36 |
| d1 | 50.8 |
| B1 | 46.609 |
| d3 | 75.5396 |
| G | 54.7878 |
| B4 | 14.3002 |
| B5 | – |
| Lock nut | N 11 |
| Locking device | W 11 |
| Hydraulic nut | HMVC 11E |
| Threads per inch | 18 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: SNW 11x2.
