Technical Specifications
Parameters as recorded in the source. Missing values are shown as a dash.

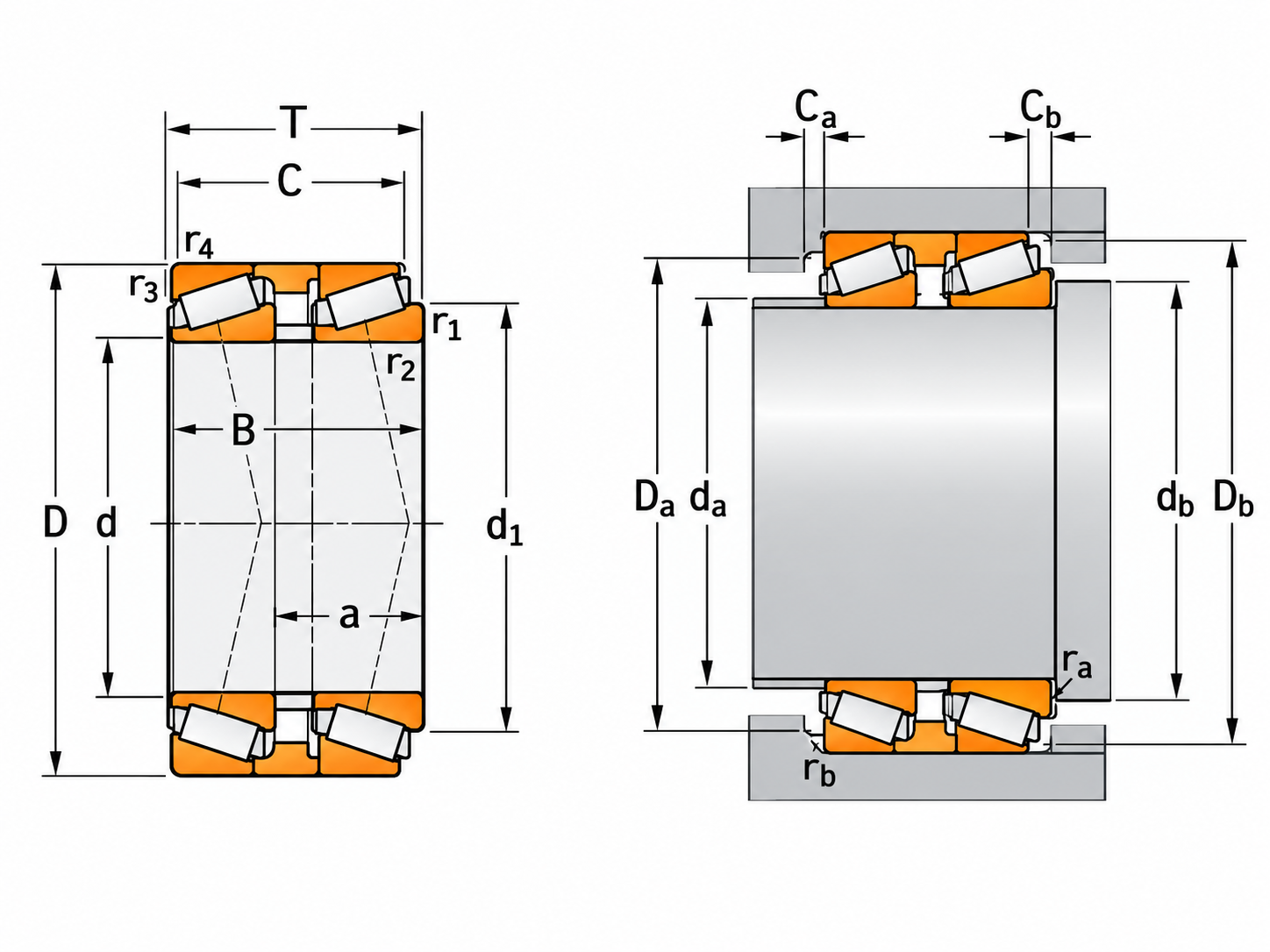

| Parameter | Value |
|---|---|
| d | 65 |
| D | 130 |
| B | 76.5 |
| Dynamic | 332 |
| Static | 430 |
| Load limit | 51 |
| Reference speed | 3000 |
| Limiting speed | 5000 |
| Mass | 4.8 |
| d1 | 102 |
| r1,2 | 3 |
| da max | 77 |
| Da max | 118 |
| ra max | 3 |
| C | 69 |
| Db min | 124 |
| r3,4 | 3 |
| a | 43 |
| rb max | 3 |
| e | 0.88 |
| Y0 | 0.4 |
| db min | 78 |
| Da min | 98 |
| T | 80 |
| Ca min | 4 |
| Cb min | 11 |
| Y | 0.68 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
