Insert bearings with an eccentric locking collar, metric shafts · Designation: YET 203
Parameters as recorded in the source. Missing values are shown as a dash.

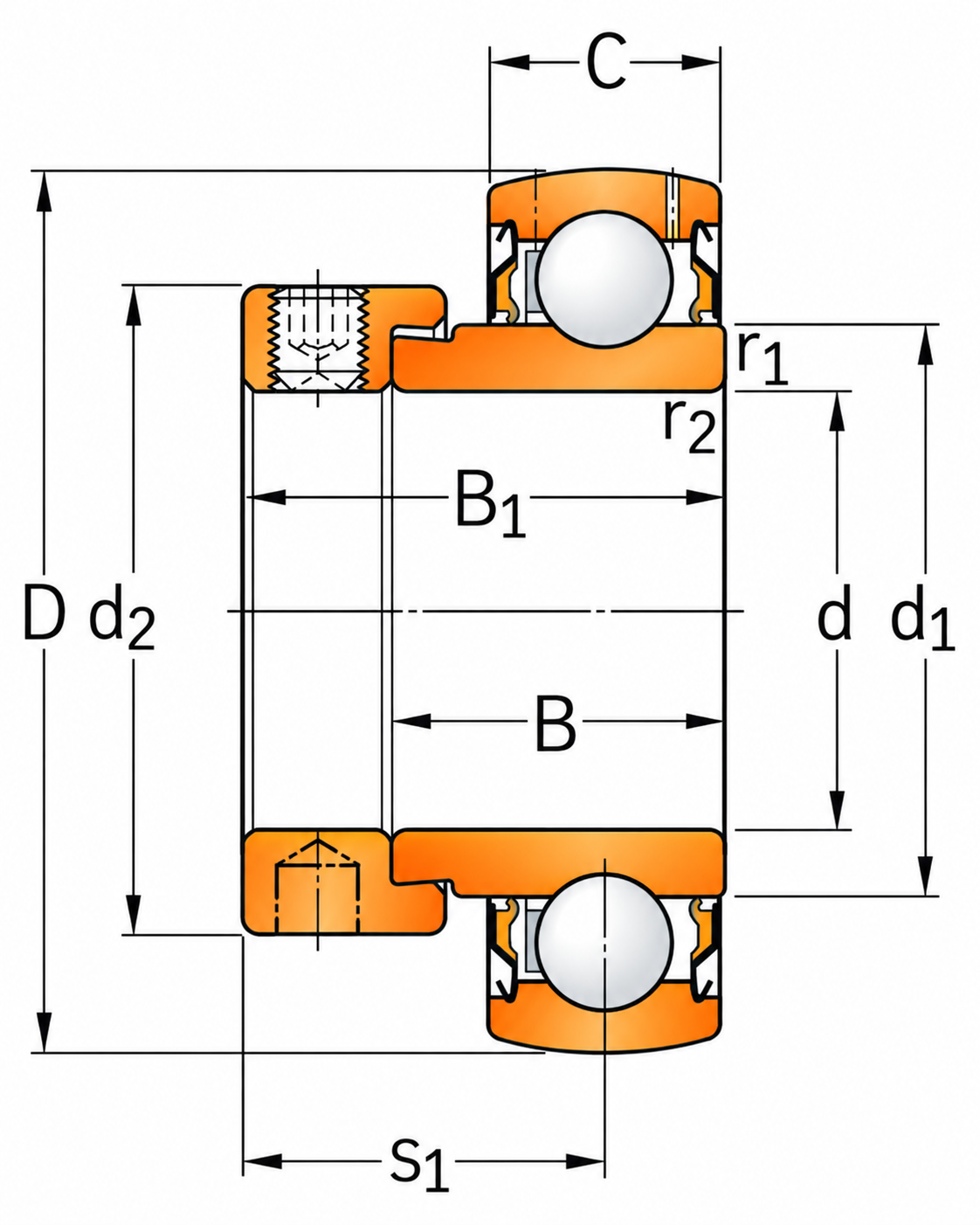

| Parameter | Value |
|---|---|
| d | 17 |
| D | 40 |
| B | 19.1 |
| Dynamic | 9.56 |
| Static | 4.75 |
| Load limit | 0.2 |
| Limiting speed | 9500 |
| Mass | 0.11 |
| d1 | 24.2 |
| d2 | 27.2 |
| r1,2 | 0.3 |
| C | 12 |
| s1 | 22.1 |
| B1 | 28.6 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Insert bearings with an eccentric locking collar, metric shafts
| Parameter | Value |
|---|---|
| d | 17 |
| D | 40 |
| B | 19.1 |
| Dynamic | 9.56 |
| Static | 4.75 |
| Load limit | 0.2 |
| Limiting speed | 9500 |
| Mass | 0.11 |
| d1 | 24.2 |
| d2 | 27.2 |
| r1,2 | 0.3 |
| C | 12 |
| s1 | 22.1 |
| B1 | 28.6 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: YET 203.
