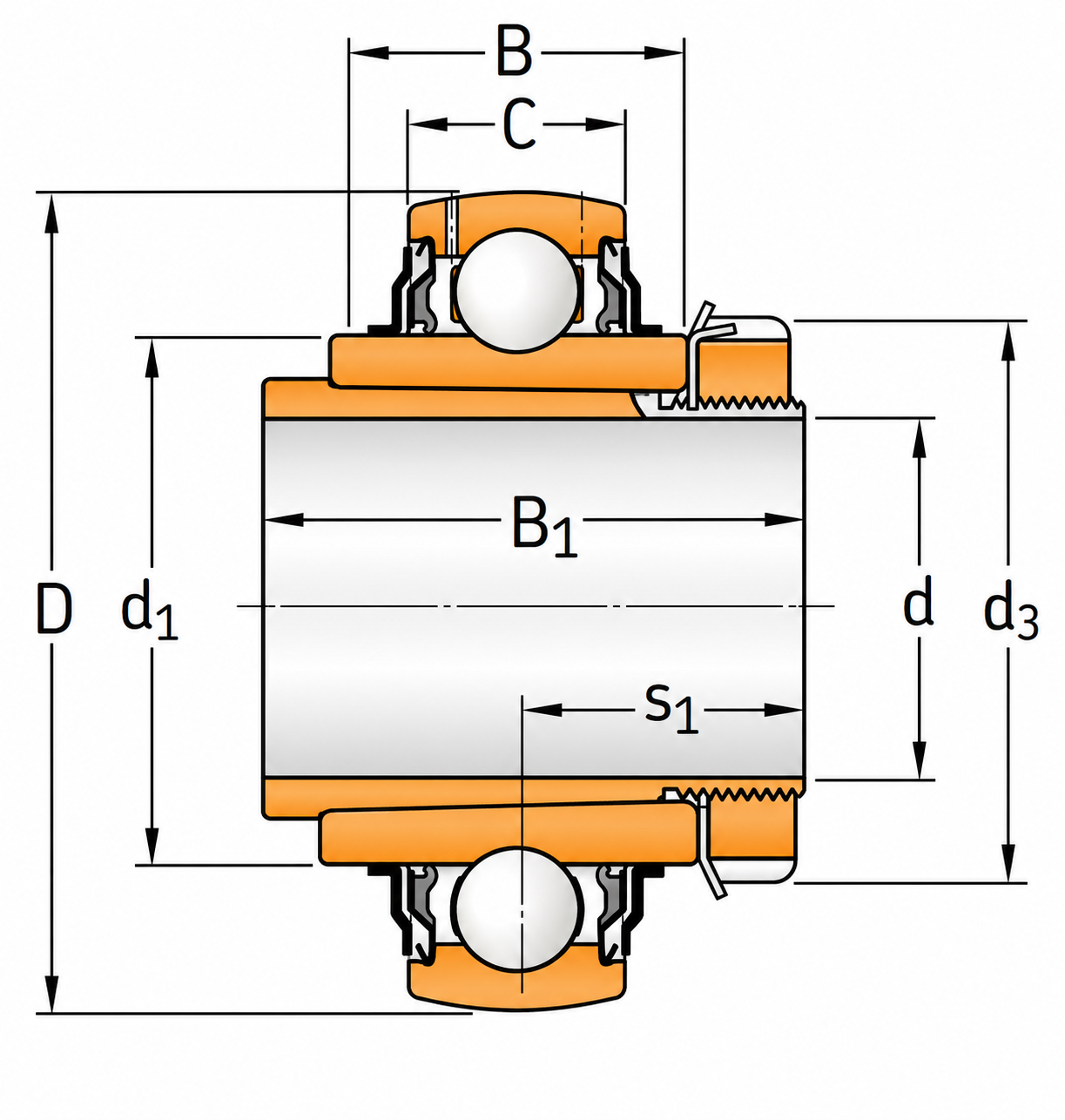

Insert bearings with a tapered bore on an adapter sleeve, inch shafts · Designation: YSA 206-2FK
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 23.813 |
| D | 62 |
| B | 28 |
| Dynamic | 19.5 |
| Static | 11.2 |
| Load limit | 0.475 |
| Limiting speed | 6300 |
| Mass | 0.39 |
| d1 | 39.7 |
| C | 18 |
| s1 | 22.5 |
| B1 | 38 |
| d3 | 45 |
| Adapter sleeve | HA 2306 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Insert bearings with a tapered bore on an adapter sleeve, inch shafts
| Parameter | Value |
|---|---|
| d | 23.813 |
| D | 62 |
| B | 28 |
| Dynamic | 19.5 |
| Static | 11.2 |
| Load limit | 0.475 |
| Limiting speed | 6300 |
| Mass | 0.39 |
| d1 | 39.7 |
| C | 18 |
| s1 | 22.5 |
| B1 | 38 |
| d3 | 45 |
| Adapter sleeve | HA 2306 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: YSA 206-2FK.
