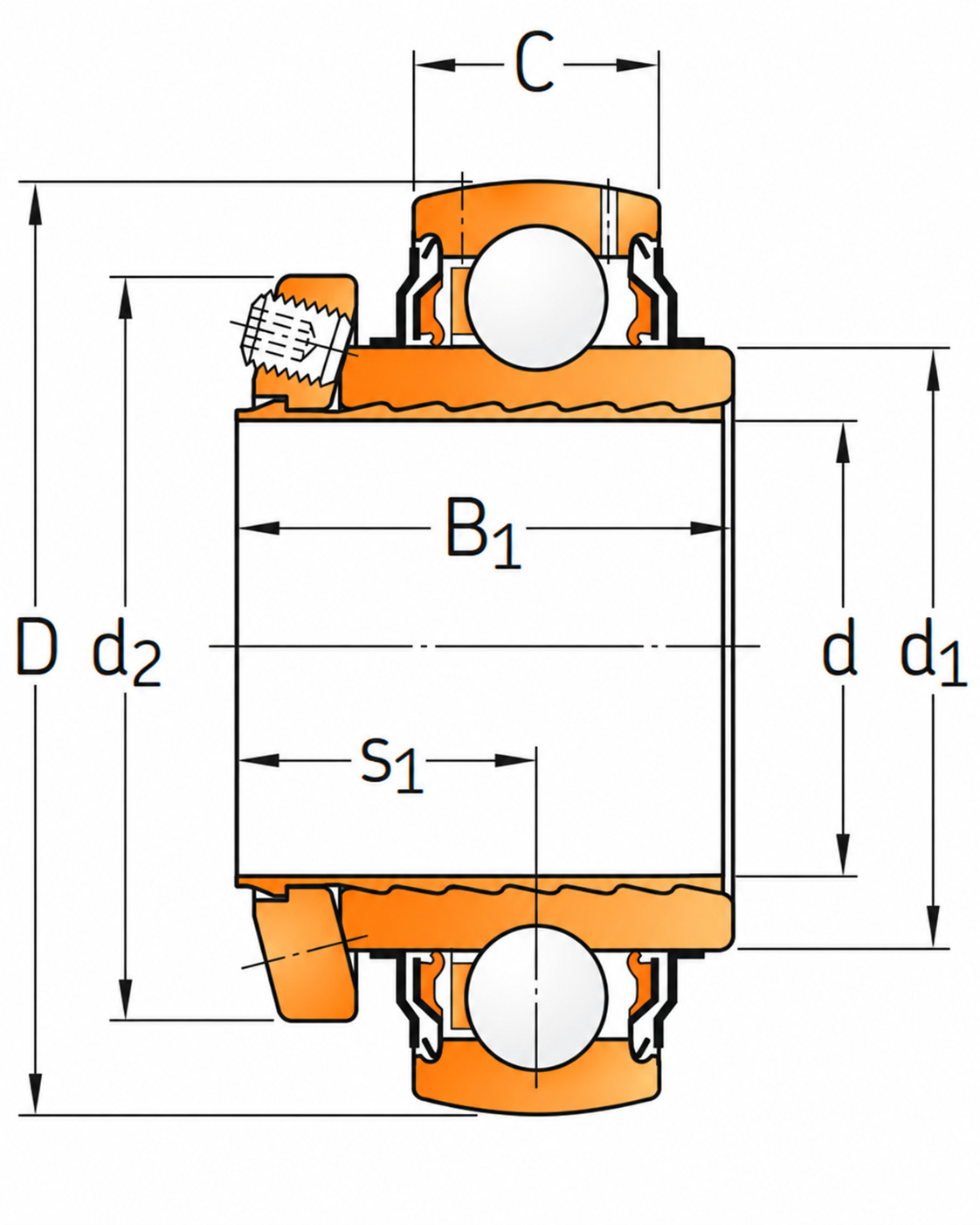

ConCentra insert bearings, metric shafts · Designation: YSPAG 210
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 50 |
| D | 90 |
| Dynamic | 35.1 |
| Static | 23.2 |
| Load limit | 0.98 |
| Limiting speed | 800 |
| Mass | 0.72 |
| d1 | 62.5 |
| d2 | 72 |
| C | 22 |
| s1 | 27.7 |
| B1 | 46.2 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
ConCentra insert bearings, metric shafts
| Parameter | Value |
|---|---|
| d | 50 |
| D | 90 |
| Dynamic | 35.1 |
| Static | 23.2 |
| Load limit | 0.98 |
| Limiting speed | 800 |
| Mass | 0.72 |
| d1 | 62.5 |
| d2 | 72 |
| C | 22 |
| s1 | 27.7 |
| B1 | 46.2 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: YSPAG 210.
