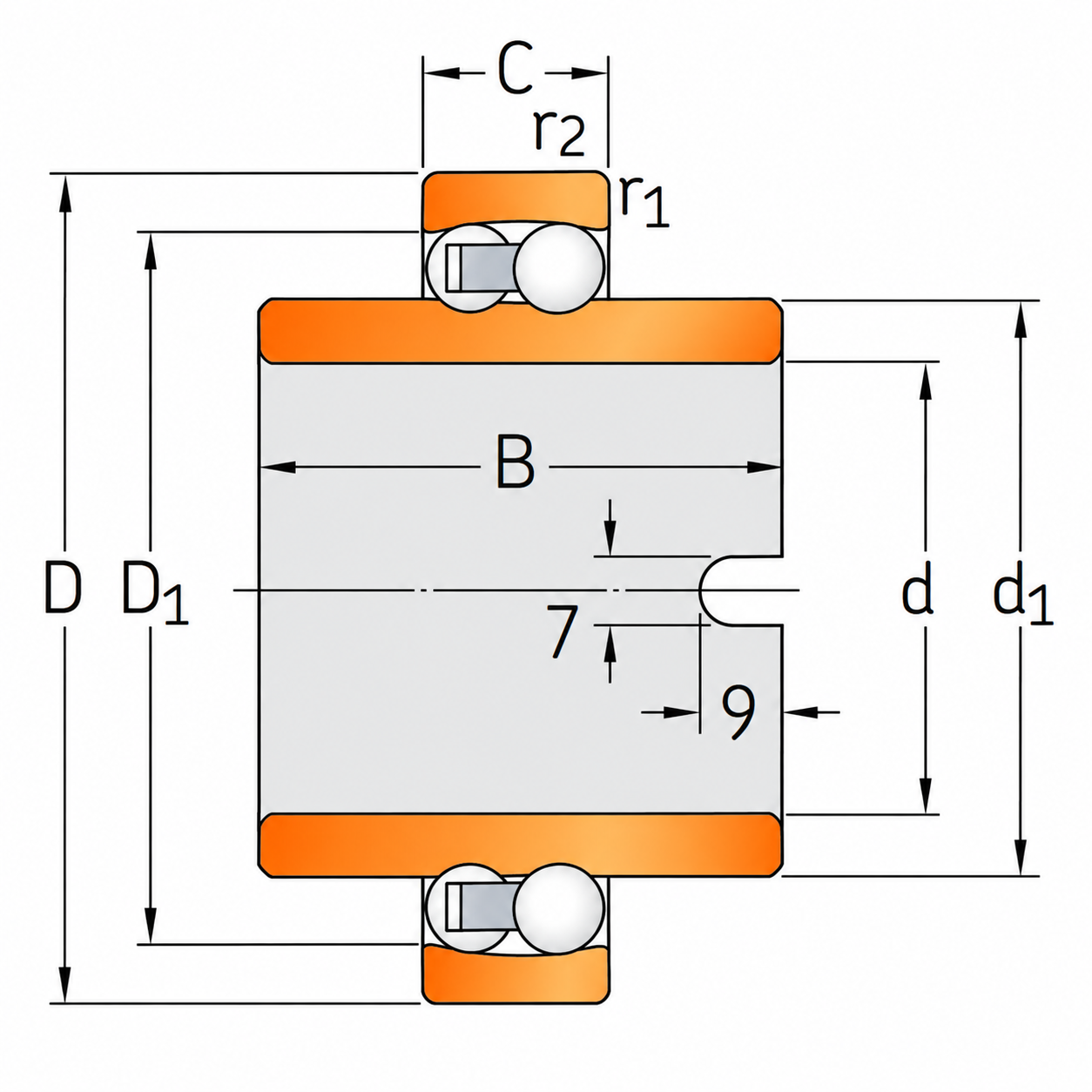

Self-aligning ball bearings with an extended inner ring · Designation: 11206 TN9
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 30 |
| D | 62 |
| B | 48 |
| Dynamic | 15.6 |
| Static | 4.65 |
| Load limit | 0.24 |
| Limiting speed | 6700 |
| Mass | 0.35 |
| d1 | 40.1 |
| D1 | 51.9 |
| r1,2 | 1 |
| Da max | 56.4 |
| ra max | 1 |
| kr | 0.04 |
| C | 16 |
| e | 0.25 |
| Y1 | 2.5 |
| Y2 | 3.9 |
| Y0 | 2.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Self-aligning ball bearings with an extended inner ring
| Parameter | Value |
|---|---|
| d | 30 |
| D | 62 |
| B | 48 |
| Dynamic | 15.6 |
| Static | 4.65 |
| Load limit | 0.24 |
| Limiting speed | 6700 |
| Mass | 0.35 |
| d1 | 40.1 |
| D1 | 51.9 |
| r1,2 | 1 |
| Da max | 56.4 |
| ra max | 1 |
| kr | 0.04 |
| C | 16 |
| e | 0.25 |
| Y1 | 2.5 |
| Y2 | 3.9 |
| Y0 | 2.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: 11206 TN9.
