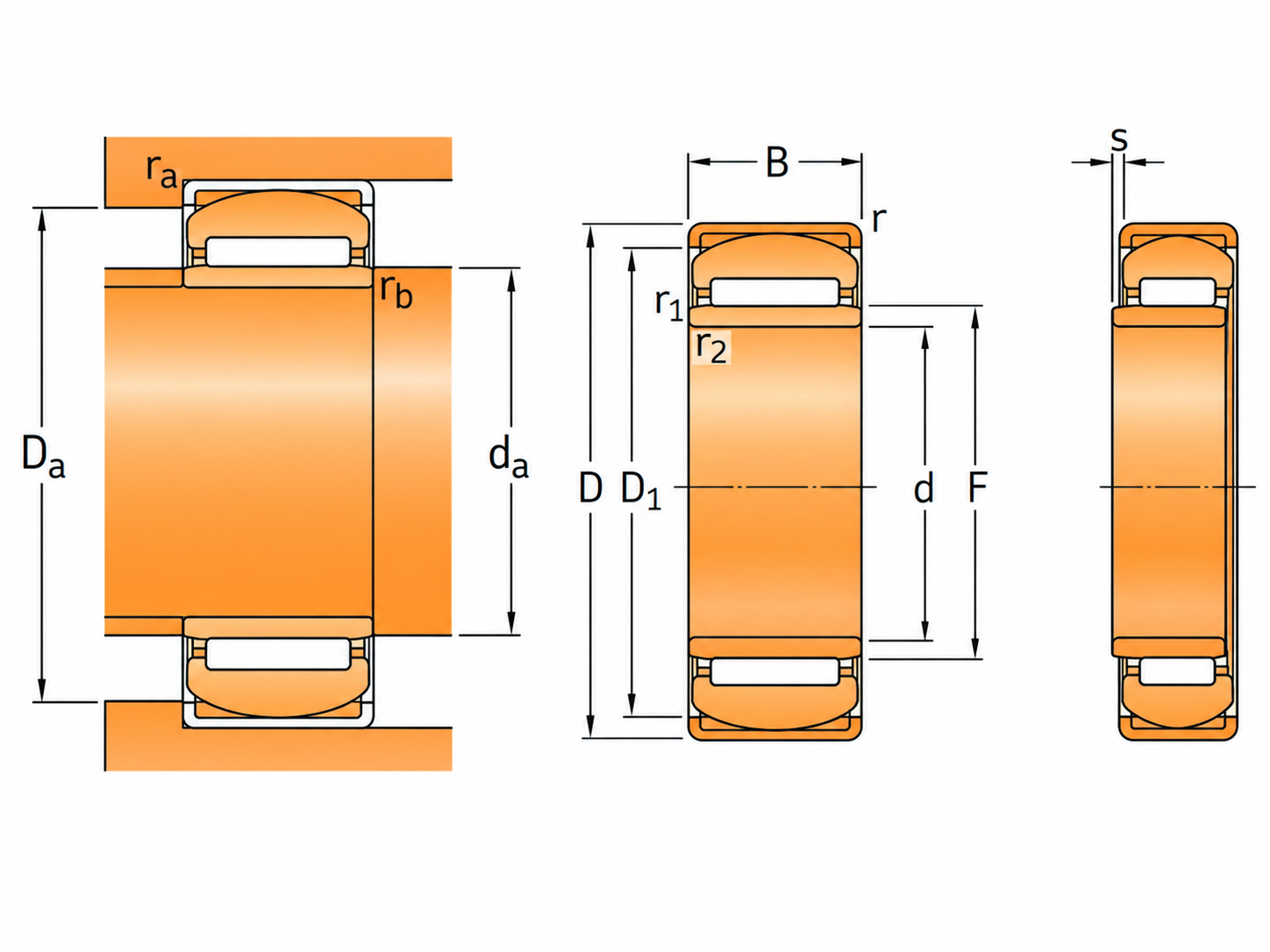

Alignment needle roller bearings, with an inner ring · Designation: PNA 20/42
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 20 |
| D | 42 |
| B | 20 |
| Dynamic | 19 |
| Static | 32.5 |
| Load limit | 4 |
| Reference speed | 16000 |
| Limiting speed | 18000 |
| Mass | 0.14 |
| D1 | 36.5 |
| r1,2 | 0.3 |
| da min | 22 |
| Da max | 37 |
| ra max | 0.8 |
| rb max | 0.3 |
| Da min | 35 |
| r min | 0.8 |
| F | 25 |
| s max | 0.5 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Alignment needle roller bearings, with an inner ring
| Parameter | Value |
|---|---|
| d | 20 |
| D | 42 |
| B | 20 |
| Dynamic | 19 |
| Static | 32.5 |
| Load limit | 4 |
| Reference speed | 16000 |
| Limiting speed | 18000 |
| Mass | 0.14 |
| D1 | 36.5 |
| r1,2 | 0.3 |
| da min | 22 |
| Da max | 37 |
| ra max | 0.8 |
| rb max | 0.3 |
| Da min | 35 |
| r min | 0.8 |
| F | 25 |
| s max | 0.5 |
Parameters as recorded in the source. A missing value is shown as a dash.
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
Designation: PNA 20/42.
