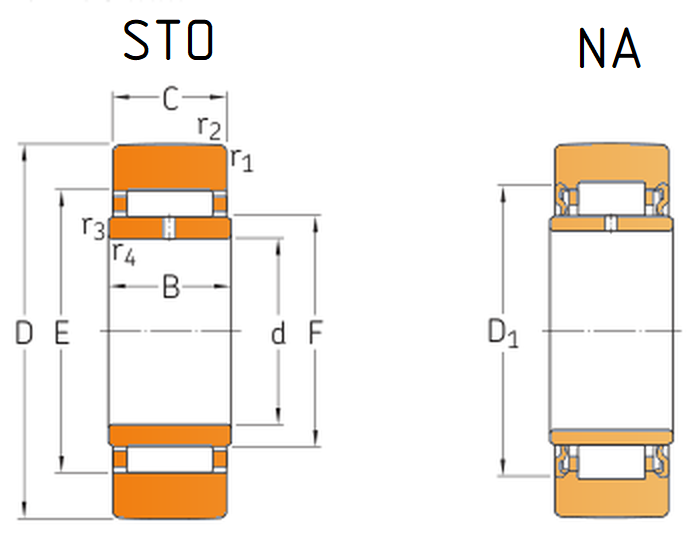

Support rollers without flange rings, with an inner ring · Designation: STO 10
Parameters as recorded in the source. Missing values are shown as a dash.
| Parameter | Value |
|---|---|
| d | 10 |
| D | 30 |
| B | 12 |
| Dynamic | 8.25 |
| Static | 8.8 |
| Load limit | 1.04 |
| Limiting speed | 6000 |
| Mass | 0.049 |
| D1 | – |
| r1,2 | 0.3 |
| C | 11.8 |
| r3,4 | 0.3 |
| E | 20 |
| F | 14 |
| Fr max | 8.5 |
| F0r max | 12.2 |
A dimensional match does not confirm suitability for a specific application. Execution and operating conditions should be confirmed during selection.
